Product Summary

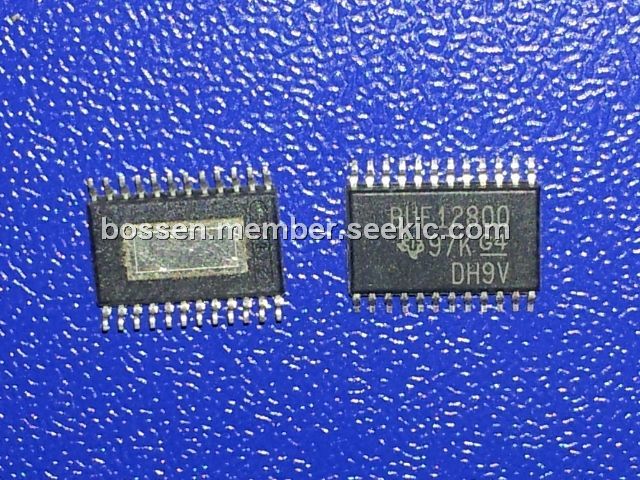

The BUF12800 is a programmable voltage reference generator designed for dynamic gamma correction in TFT-LCD panels. It provides 12 programmable outputs, each with 10-bit resolution. The BUF12800 features a double-buffered DAC register structure that significantly simplifies implementation of dynamic gamma control. The applications of the BUF12800 are TFT-LCD reference drivers, reference voltage generators, industrial process control.
Parametrics
BUF12800 absolute maximum ratings: (1)Supply Voltage, VS:+20V; (2)Supply Voltage, VSD:+6V; (3)Signal Input Terminals, SCL, SDA, AO, LD: Voltage:-0.5V to +6V, Current:±10mA; (4)Output Short-Circuit:Continuous; (5)Operating Temperature:-40℃ to +95℃; (6)Storage Temperature:-65℃ to +150℃; (7)Junction Temperature:+125℃; (8)Lead Temperature (soldering, 10s):+300℃; (9)ESD Rating: Human Body Model (HBM):4000V, Charged Device Model(CDM):1000V, Machine Model (MM):200V.
Features
BUF12800 features: (1)12-channel gamma correction; (2)10-bit resolution; (3)double-buffered DAC registers; (4)integrated reference buffers; (5)rail-to-rail output; (6)low supply current: 900μA/ch; (7)supply voltage: 7V to 18V; (8)digital supply: 2.7V to 5.5V; (9)industry-standard two-wire interface: high-speed mode: 3.4MHz; (10)high esd rating:-4kV HBM, 1kV CDM, 200V MM; (11)demoboard and software available.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BUF12800 |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
BUF12800AIPWP |
Texas Instruments |
LCD Gamma Buffers Ref Vltg Generator for Correction |
Data Sheet |
|
|
|||||||||||||

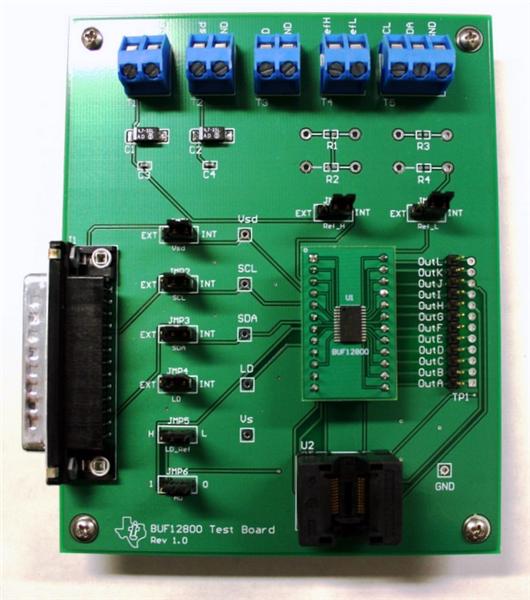

BUF12800EVM |
Texas Instruments |
Amplifier IC Development Tools BUF12800 Eval Mod |
Data Sheet |
|
|
|||||||||||||
BUF12800AIPWPG4 |
Texas Instruments |
LCD Gamma Buffers Ref Vltg Generator for Correction |
Data Sheet |
|
|
|||||||||||||
BUF12800AIPWPRG4 |
Texas Instruments |
LCD Gamma Buffers Ref Vltg Generator for Correction |
Data Sheet |
|
|
|||||||||||||
BUF12800AIPWPR |
Texas Instruments |
LCD Gamma Buffers Ref Vltg Generator for Correction |
Data Sheet |
|
|
