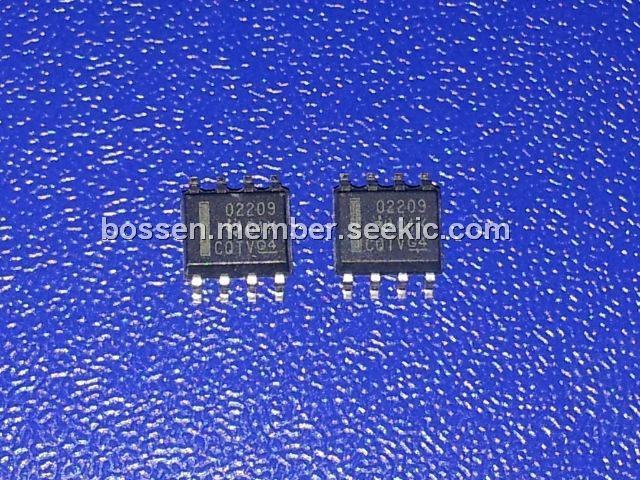

Product Summary

The OPA2209 is the precision operational amplifier which achieves very low voltage noise density with a supply current of only 2.5mA(max). The OPA2209 also offers rail-to-rail output swing, which helps to maximize dynamic range.

Parametrics

OPA2209 absolute maximum ratings: (1)Supply Voltage:40V; (2)Signal Input Terminal, Voltage(2): (V–) – 0.5 to (V+) + 0.5V; (3)Signal Input Terminal, Current (except power-supply pins)(2): 10mA; (4)Output Short-Circuit(3): Continuous; (5)Operating Temperature: –55 to +150℃; (6)Storage Temperature: –65 to +150℃; (7)Junction Temperature: +200℃; (8)Human Body Model (HBM)3000V; (9)ESD Ratings:Charged Device Model (CDM).

Features

OPA2209 features: (1)Low voltage noise: 2.2nV; (2)0.1Hz to 10 Hz noise: 130n Vpp; (3)Low quiescent current: 2.5mA/Ch(max); (4)Low offset voltage: 150mV(max); (5)Gain band width product: 18MHz; (6)Slew rate: 6.4V/ms; (7)Wide supply voltage: ±2.25V to ± 18V, +4.5V to +36V; (8)Rail-to-rail output; (9)Short-circuit current: ±65mA.

Diagrams

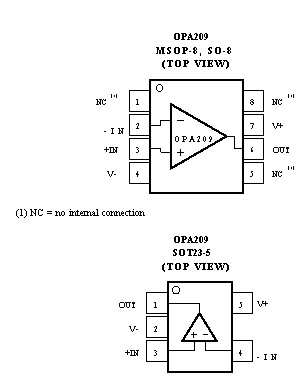

OPA2209 pin configuration
