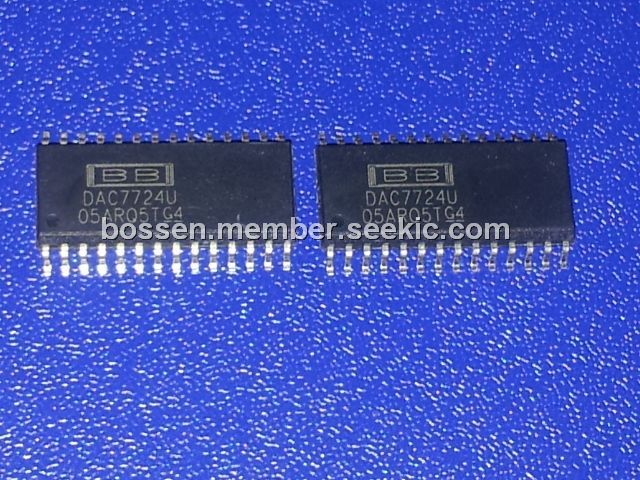

DAC7724U

12-bit, quad voltage output, digital-to-analog converter, SOP28, low power, 250mW

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~4.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~4.00

PartNumber:: DAC7724U

Brand:: Burr-Brown Corporation - BB | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Chen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-02

From Other Seller

Part Number:DAC7724U
US $1.00 - 4.00
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

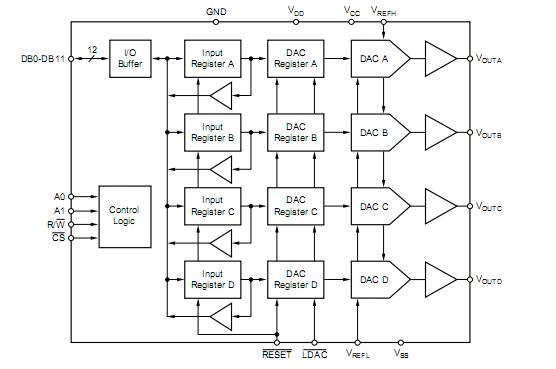

The DAC7724U is a 12-bit quad voltage output digital-to-analog converter with guaranteed 12-bit monotonic performance over the specified temperature range. It accepts 12-bit parallel input data, and provides a readback mode of the internal input registers. The applications of the DAC7724U are process control, closed-loop servo-control, motor control, data acquisition systems.

Parametrics

DAC7724U absolute maximum ratings: (1)VCC to VSS:–0.3V to +32V; (2)VCC to GND:–0.3V to +16V; (3)VSS to GND:+0.3V to –16V; (4)VDD to GND:–0.3V to 6V; (5)VREFH to GND:–9V to +11V; (6)VREFL to GND (VSS = –15V):–11V to +9V; (7)VREFL to GND (VSS = 0V):–0.3V to +9V; (8)VREFH to VREFL:–1V to +22V; (9)Digital Input Voltage to GND:–0.3V to VDD + 0.3V; (10)Digital Output Voltage to GND:–0.3V to VDD + 0.3V; (11)Maximum Junction Temperature:+150℃; (12)Operating Temperature Range:–40℃ to +85℃; (13)Storage Temperature Range:–65℃ to +150℃; (14)Lead Temperature (soldering, 10s):+300℃.

Features

DAC7724U features: (1)low power: 250mW max; (2)single supply output range: +10V; (3)dual supply output range: ±10V; (4)settling time: 10μs to 0.012%; (5)12-bit linearity and monotonicity:-40℃ to +85℃; (6)reset to mid-scale; (7)data readback; (8)double-buffered data inputs.
