Product Summary
The 30CTQ100GS has been optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 175℃ junction temperature. Typical applications of 30CTQ100GS are in switching power supplies, converters, free-wheeling diodes, and reverse battery protection.
Parametrics
30CTQ100GS absolute maximum ratings: (1)Rectangular, IF(AV): 30A; (2)waveform, , IF(AV): 30A; (3)VRRM: 80 to 100V; (4)IFSM @ tp = 5 μs, sine: 650A; (5)VF @ 15 Apk, TJ = 125℃: 0.69V; (6)TJ range: - 55 to 175℃.
Features
30CTQ100GS features: (1)175℃ TJ operation; (2)Center tap configuration; (3)Low forward voltage drop; (4)High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance; (5)High frequency operation; (6)Guard ring for enhanced ruggedness and long term reliability.

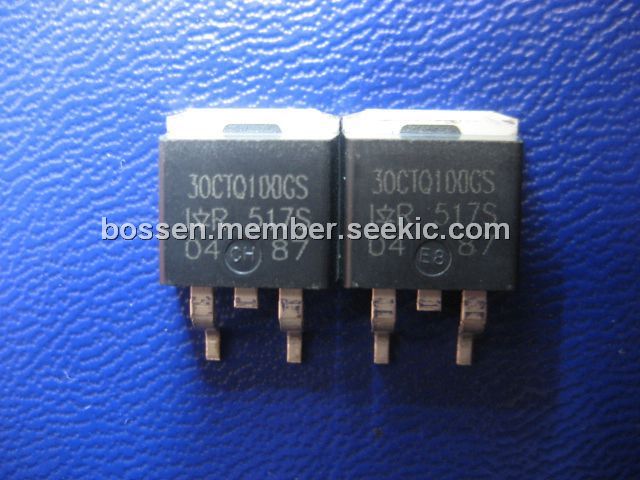

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
30CTQ100GS |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 30 Amp 100 Volt Common Cathode |
Data Sheet |
Negotiable |
|
|||||||||||||
30CTQ100GSTRL |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 30 Amp 100 Volt Common Cathode |
Data Sheet |
Negotiable |
|
|||||||||||||
30CTQ100GSTRLP |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 2x15 Amp 100 Volt 650 Amp IFSM |
Data Sheet |
|
|
|||||||||||||
30CTQ100GSTRRP |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 2x15 Amp 100 Volt 650 Amp IFSM |
Data Sheet |
|
|
|||||||||||||
30CTQ100GSTRR |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 30 Amp 100 Volt Common Cathode |
Data Sheet |
Negotiable |
|
