Product Summary
The 40EPF12 is a fast soft recovery rectifier diode. The 40EPF12 fast soft recovery QUIETIR rectifier series has been optimized for combined short reverse recovery time and low forward voltage drop. The glass passivation of the 40EPF12 ensures stable reliable operation in the most severe temperature and power cycling conditions.
Parametrics
40EPF12 absolute maximum ratings: (1)IF(AV) Sinusoidal waveform: 40 A; (2)VRRM: 1000 to 1200 V; (3)IFSM: 475 A; (4)VF @20 A, TJ = 25℃: 1.25 V; (5)trr @ 1A, - 100A/μs: 95 ns; (6)TJ: - 40 to 150 ℃.
Features
40EPF12 features: (1)output rectification and freewheeling in inverters, choppers and converters; (2)Input rectifications where severe restrictions on conducted EMI should be met.

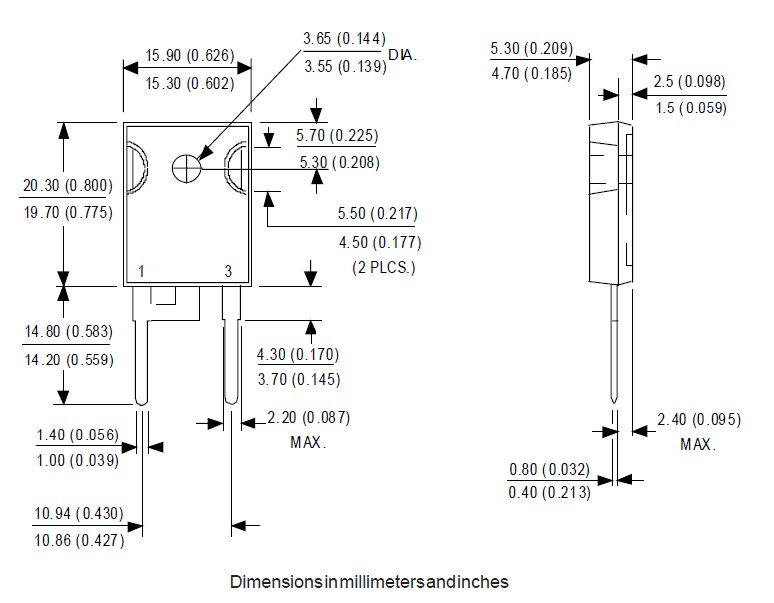

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 40EPF12 |
Vishay Semiconductors |
Rectifiers 1200 Volt 40 Amp |
Data Sheet |
Negotiable |
|
||||||||||||||||||||||
|
40EPF12PBF |
|
DIODE FAST REC 1200V 40A TO247AC |
Data Sheet |
|
|
||||||||||||||||||||||
