Product Summary
The FSAM15SH60 is a smart power module. The FSAM15SH60 is an advanced smart power module (SPM) that Fairchild has newly developed and designed to provide very compact and low cost, yet high performance ac motor drives mainly targeting high speed low-power inverterdriven application like washing machines. It combines optimized circuit protection and drive matched to low-loss IGBTs. Highly effective short-circuit current detection/protection of the FSAM15SH60 is realized through the use of advanced current sensing IGBT chips that allow continuous monitoring of the IGBTs current.
Parametrics
FSAM15SH60 absolute maximum ratings: (1)Supply Voltage VDC Applied to DC Link: 450 V; (2)Supply Voltage (Surge) VPN(Surge) Applied between P- N: 500 V; (3)Collector-emitter Voltage VCES: 600 V; (4)Each IGBT Collector Current ± IC TC = 25℃: 15 A; (5)Each IGBT Collector Current ± IC TC = 100℃: 9 A; (6)Each IGBT Collector Current (Peak) ± ICP TC = 25℃: 30 A; (7)Collector Dissipation PC TC = 25℃ per One Chip: 46 W; (8)Operating Junction Temperature TJ: -55 ~ 150 ℃.
Features
FSAM15SH60 features: (1)Single-grounded power supply due to built-in HVIC; (2)Typical switching frequency of 15kHz; (3)Built-in thermistor for over-temperature monitoring; (4)Inverter power rating of 0.75kW / 100~253 Vac; (5)Isolation rating of 2500Vrms/min.; (6)Very low leakage current due to using ceramic substrate; (7)Adjustable current protection level by varying series resistor value with sense-IGBTs.

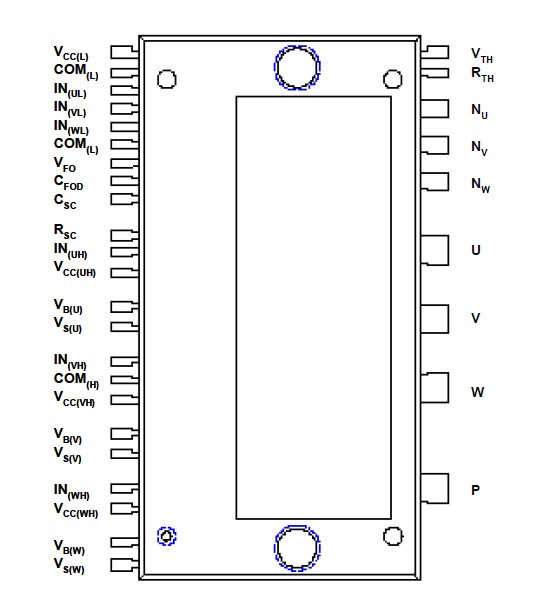

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FSAM15SH60 |
Fairchild Semiconductor |
IGBT Transistors 600V 15A SPM2 |
Data Sheet |
Negotiable |
|
||||||||||||
|
FSAM15SH60A |
Fairchild Semiconductor |
IGBT Transistors 600V/15A/ SPM2 |
Data Sheet |
|
|
||||||||||||
