Product Summary

The SSH25N40A is a advanced Power MOSFET.

Parametrics

SSH25N40A absolute maximum ratings: (1)Drain Current-Pulsed IDM: 100A; (2)Gate-to-Source Voltage VGS: ±30V; (3)Single Pulsed Avalanche Energy EAS: 1429mJ; (4)Avalanche Current IAR: 25A; (5)Repetitive Avalanche Energy EAR: 27.8mJ; (6)Peak Diode Recovery dv/dt dv/dt: 4.0V/ns.

Features

SSH25N40A features: (1)Avalanche Rugged Technology; (2)Rugged Gate Oxide Technology; (3)Lower Input Capacitance; (4)Improved Gate Charge; (5)Extended Safe Operating Area; (6)Lower Leakage Current : 10 A (Max.) @ VDS = 400V; (7)Low RDS(ON) : 0.162Ω(Typ.).

Diagrams

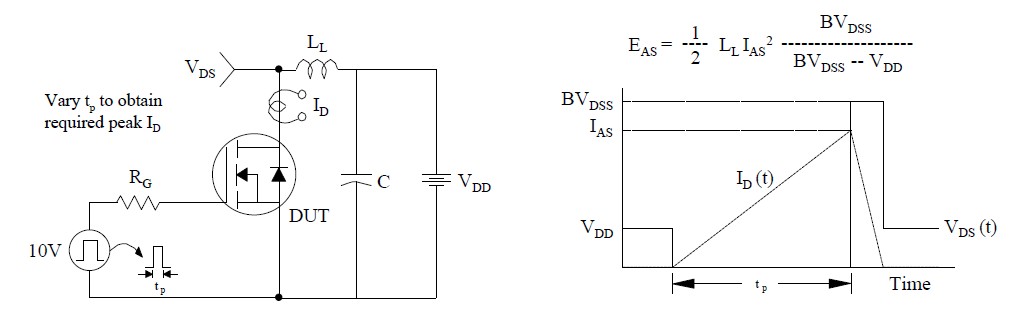

SSH25N40A Unclamped Inductive Switching Test Circuit & Waveforms

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SSH25N40A
SSH25N40A

Fairchild Semiconductor

MOSFET TO-3P

Data Sheet

Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SSH25N40A
SSH25N40A

Fairchild Semiconductor

MOSFET TO-3P

Data Sheet

Negotiable
SSH22N50A
SSH22N50A

Fairchild Semiconductor

MOSFET NCh/500V/22a/0.25Ohm

Data Sheet

Negotiable
