Product Summary

The 2SC1116 is a Silicon NPN Power Transistor for audio and general purpose applications.

Parametrics

2SC1116 absolute maximum ratings: 1)VCBO, Collector-base voltage at Open emitter: 180 V; (2)VCEO, Collector-emitter voltage at Open base: 120 V; (3)VEBO, Emitter-base voltage at Open collector: 6 V; (4)IC, Collector current: 10 A; (5)PC, Collector power dissipation at TC=25℃: 100 W; (6)Tj, Junction temperature: 150 ℃; (7)Tstg, Storage temperature: -55~150 ℃.

Features

2SC1116 features: (1)With TO-3 package; (2)Wide area of safe operation.

Diagrams

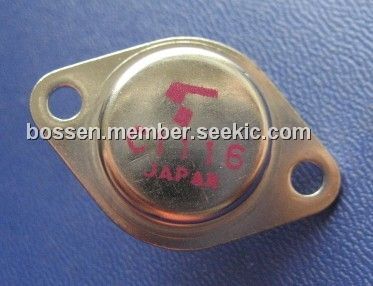

2SC1116 simplified outline (TO-3) and symbol
