Product Summary

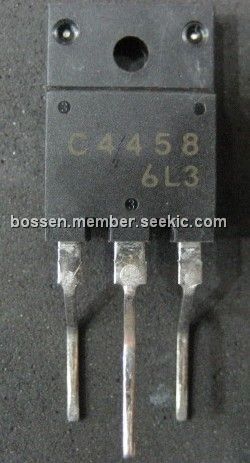

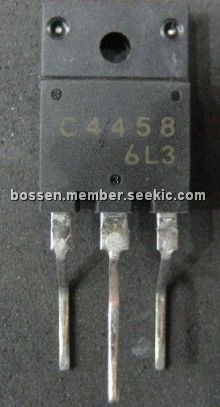

The 2SC4458 is a NPN triple diffused planar silicon transistor for 500V/7A switching regulator applications..
Parametrics
2SC4458 absolute maximum ratings: (1)Collector-to-Base Voltage, VCBO: 800 V; (2)Collector-to-Emitter Voltage, VCEO: 500 V; (3)Emitter-to-Base Voltage, VEBO: 7 V; (4)Collector Current, IC: 7 A; (5)Collector Current (Pulse), ICP: 14 A; (6)Base Current, IB: 3 A; (7)Collector Dissipation, PC: 3 W; 45 W at Tc=25℃; (8)Junction Temperature, Tj: 150; (9)Storage Temperature, Tstg: –55 to +150℃.
Features
2SC4458 features: (1)High breakdown voltage, high reliability; (2)Fast switching speed; (3)Wide ASO; (4)Adoption of MBIT process; (5)Micaless package facilitating mounting.

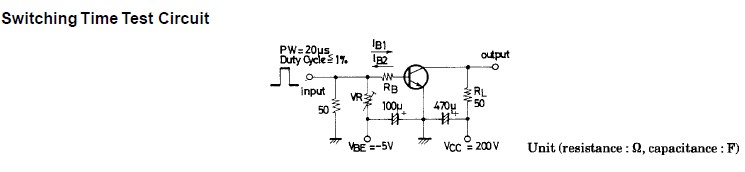

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SC4458 |
Other |
|
Data Sheet |
Negotiable |
|
||||
