STW6NB100

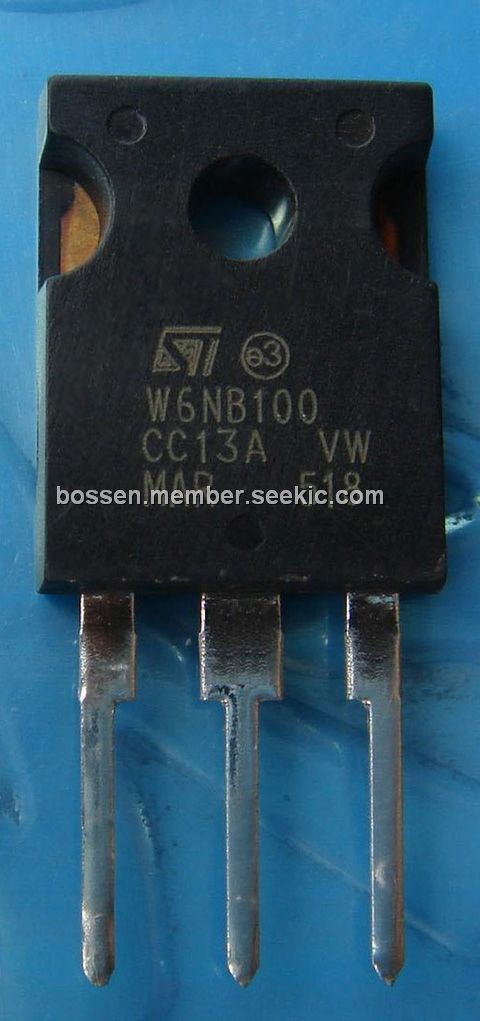

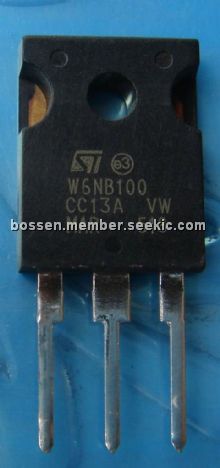

TO-3P, N channel, 1000V, 2.3ohm, 5.4A, power MESH MOSFET, 2.3W, 30V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~4.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~4.00

PartNumber:: STW6NB100

Brand:: STMicroelectronics - ST | Pack: TO | D/C: 05+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Chen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-10

From Other Seller

Part Number:STW6NB100
US $1.00 - 4.00
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The STW6NB100 is a N channel 1000V 2.3ohm 5.4A TO-247 power MESH MOSFET. Using the latest high voltage technology, STMicroelectronics of the STW6NB100 has designed an advanced family of power Mosfets with outstanding performances. The new patent pending strip layout of the STW6NB100 coupled with the Company proprietary edge termination structure, gives the lowest RDS(on) per area, exceptional avalanche and dv/dt capabilities and unrivalled gate charge and switching characteristics.

Parametrics

STW6NB100 absolute maximum ratings: (1)VDS Drain-source Voltage (VGS = 0): 1000 V; (2)VDGR Drain- gate Voltage (RGS = 20 kW): 1000 V; (3)VGS Gate-source Voltage: ± 30 V; (4)ID Drain Current (continuous) at Tc = 25 ℃: 5.4 A; (5)ID Drain Current (continuous) at Tc = 100 ℃: 3.4 A; (6)IDM(·) Drain Current (pulsed): 21 A; (7)Ptot Total Dissipation at Tc = 25 ℃: 160 W; (8)Tstg Storage Temperature: -65 to 150 ℃; (9)Tj Max. Operating Junction Temperature: 150 ℃.

Features

STW6NB100 features: (1)Typical RDS(on) = 2.3 W; (2)Extremely high dv/dt capability; (3)± 30V gate to source voltage rating; (4)100% avalanche tested; (5)Very low intrinsic capacitances; (6)Gate charge minimized.
