Product Summary

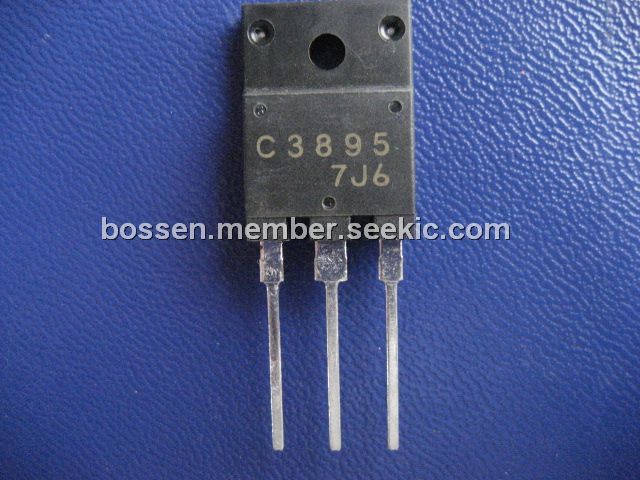

The 2SC3895 is an ultrahigh-definition display for Ultrahigh-definition CRT display horizontal deflection output applications.
Parametrics
2SC3895 absolute maximum ratings: (1)VCBO, Collector-base voltage Open emitter: 1500 V ; (2)VCEO, Collector-emitter voltage Open base: 800 V ; (3)VEBO, Emitter-base voltage Open collector: 6 V ; (4)IC, Collector current: 7 A; (5)ICM, Collector current-peak: 16 A ; (6)PC, Collector dissipation Ta=25℃: 3.0 W; TC=25℃60 w; (7)Tj, Junction temperature: 150 ℃; (8)Tstg, Storage temperature: -55～150 ℃.
Features
2SC3895 features: (1)adoption of MBIT process; (2)High speed; (3)High breakdown voltage; (4)High reliability.

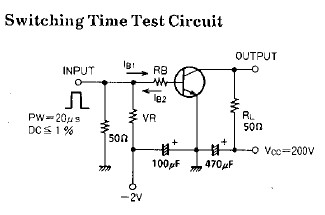

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SC3895 |
Other |
|
Data Sheet |
Negotiable |
|
||||
