Product Summary

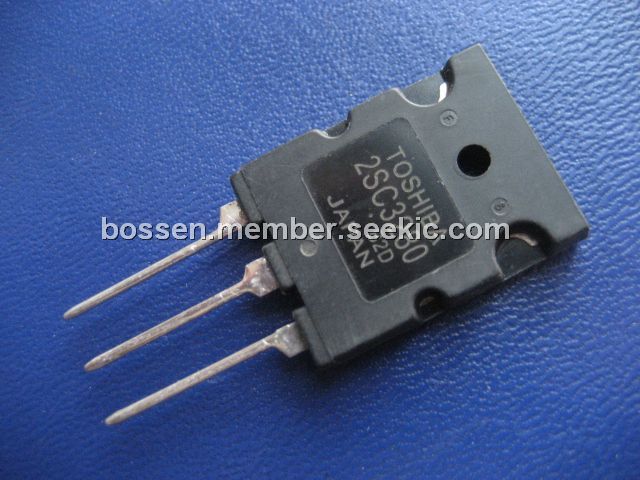

The 2SC3280 is a Silicon NPN Power Transistor for audio power amplifier and dc to dc converter.
Parametrics
2SC3280 absolute maximum rating: (1)Collector-Base Voltage, VCBO: 160v; (2)Collector-Emitter Voltage, VCEO: 160v; (3)Emitter-Base voltage, VEBO: 6v; (4)Collector Current (DC), IC:12A; (5)Collector Dissipation, PC: 120A; (6)Junction Temperature, Tj: 150 ℃; (7)Storage Temperature, Tstg: -55~150℃.
Features
2SC3280 features: (1)High Current Capability; (2)High Power Dissipation; (3)Complementary to 2SA1301.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SC3280 |
Other |
|
Data Sheet |
Negotiable |
|
||||
