SC1565IS

positive voltage regulator, SOP8, 5.5 V, Low reverse leakage, 1.2V to 4.8V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~4.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~4.00

PartNumber:: SC1565IS

Brand:: Semtech Corporation - Semtech | Pack: SOP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Chen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-20

From Other Seller

Part Number:SC1565IS
US $1.00 - 4.00
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
FM31256-G

US $2.40 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

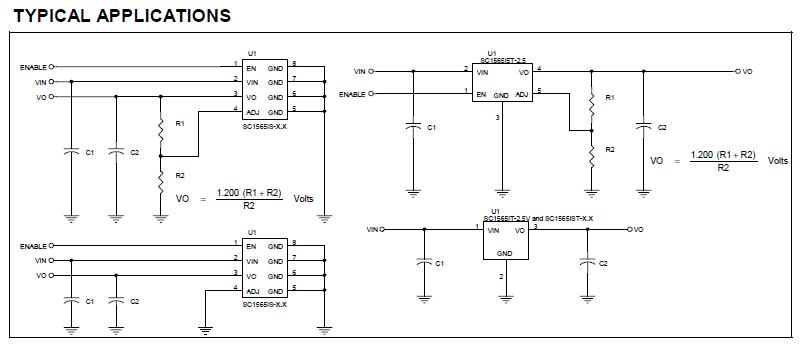

The SC1565IS is a high performance positive voltage regulator designed for use in applications requiring very low dropout voltage at up to 1.5 Amps. Since it has superior dropout characteristics compared to regular LDOs, the SC1565IS can be used to supply 2.5V on motherboards or 2.8V on peripheral cards from the 3.3V supply thus allowing the elimination of costly heatsinks. Additionally, the 5-lead TO-220 and SO-8 versions have an enable pin to further reduce power dissipation while shut down. The applications of the SC1565IS include Battery powered systems, Motherboards, Peripheral cards, PCMCIA cards.

Parametrics

SC1565IS absolute maximum ratings: (1)Input Voltage: 5.5 V; (2)Power Dissipation: Internally Limited W; (3)Thermal Resistance Junction to Ambient: SO-8: 65 ℃/W, SOT-223: 63 ℃/W, TO-220-X: 50 ℃/W; (4)Operating Ambient Temperature Range: -40 to 85 ℃; (5)Operating Junction Temperature Rang: -40 to 150 ℃; (6)Storage Temperature Range: -65 to 150℃; (7)Lead Temperature (Soldering) 10 Sec: 300 ℃; (8)ESD Rating (Human body model): 4 kV.

Features

SC1565IS features: (1)350mV dropout @ 1.5A; (2)Adjustable output from 1.2V to 4.8V; (3)2.5V and 1.8V options (adjustable externally using resistors); (4)Over current and over temperature protection; (5)Enable pin; (6)10μA quiescent current in shutdown; (7)Low reverse leakage (output to input); (8)Surface mount and through-hole packages; (9)Full industrial temperature range.
