Product Summary

The OPA4872 is a high-speed multiplexer. The OPA4872 offers a very wideband 4:1 multiplexer in an SO-14 package. Using only 10.6 mA, the OPA4872 provides a user-settable output amplifier gain with greater than 500-MHz large-signal bandwidth (2 VPP). The switching glitch is improved over earlier solutions using a new (patented) input stage switching approach. This technique uses current steering as the input switch while maintaining an overall closed-loop design. The OPA4872 exhibits an off isolation of 88dB in either Disable or Shutdown mode. With greater than 500-MHz small-signal bandwidth at a gain of 2, the OPA4872 gives a typical 0.1-dB gain flatness to greater than 120 MHz.

Parametrics

OPA4872 absolute maximum ratings: (1)Power supply: ±6.5 V; (2)Input voltage range: ±VS V; (3)Storage temperature range: –65 to +125 ℃; (4)Lead temperature (soldering, 10s): +260 ℃; (5)Junction temperature (TJ): +150 ℃; (6)Junction temperature: continuous operation, long-term reliability: +140 ℃.

Features

OPA4872 features: (1)500MHz Small-Signal Bandwidth; (2)500MHz, 2-VPP Bandwidth; (3)0.1dB Gain Flatness to 120 MHz; (4)10ns Channel-Switching Time; (5)Low Switching Glitch: 40 mVPP; (6)2300-V/ms Slew Rate; (7)0.035%/0.005° Differential Gain, Phase; (8)Quiescent Current = 10.6 mA.

Diagrams

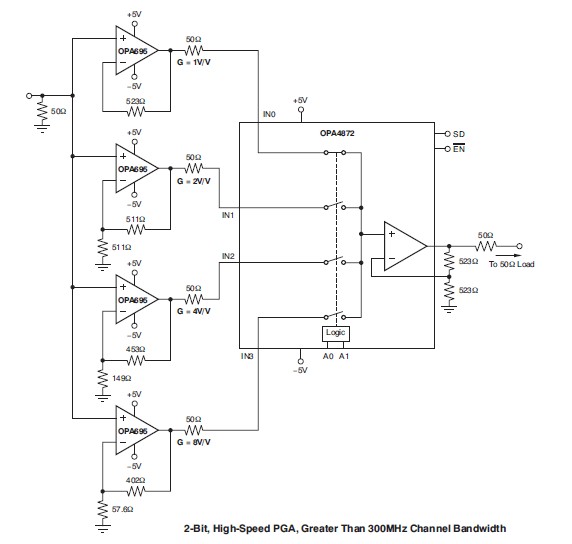

OPA4872 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

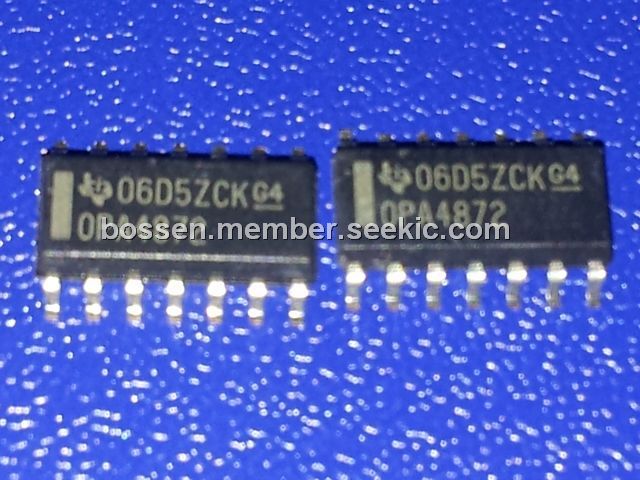

OPA4872ID
OPA4872ID

Texas Instruments

Multiplexer Switch ICs 4:1 High Speed Multiplexer

Data Sheet

0-1: $3.54
1-25: $3.22
25-100: $2.17
100-250: $2.12
OPA4872IDG4
OPA4872IDG4

Texas Instruments

Multiplexer Switch ICs 4:1 Hi Speed Multipl

Data Sheet

0-1: $3.08
1-25: $2.80
25-100: $2.17
100-250: $2.06
OPA4872MDREP
OPA4872MDREP

Texas Instruments

Multiplexer Switch ICs EP 4:1 High-Spd Mux

Data Sheet

0-1880: $3.43
1880-2000: $3.31
2000-2500: $3.31
OPA4872IDR
OPA4872IDR

Texas Instruments

Multiplexer Switch ICs 4:1 High Speed Multiplexer

Data Sheet

0-1855: $1.74
1855-2000: $1.68
2000-2500: $1.68
OPA4872IDRG4
OPA4872IDRG4

Texas Instruments

Multiplexer Switch ICs 4:1 Hi Speed Multipl

Data Sheet

0-1855: $1.74
1855-2000: $1.68
2000-2500: $1.68
