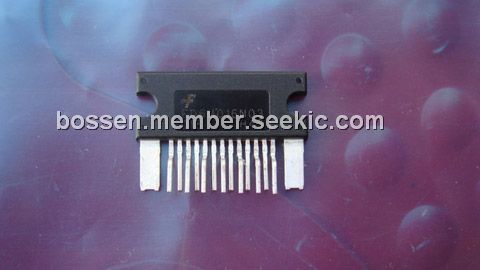

Product Summary
The FD6M016N03 is a 30V/80A synchronous rectifier module. The FD6M016N03 is one product in the Power-SPMTM family that Fairchild has newly developed and designed to be most suitable for more compact and more efficient synchronous rectification applications such as internet server power supplies and telecom system power supplies. For higher efficiency, the FD6M016N03 includes built-in very low RDS(ON) MOSFETs. This Power-SPM FD6M016N03 can be used in the secondary side of the PWM transformer of forward/bridge converter to provide high current rectification at output voltages ranging from 12 Volts down to 5 Volts.
Parametrics
FD6M016N03 absolute maximum ratings: (1)VDS Drain to Source Voltage: 30V; (2)VGS Gate to Source Voltage: ±20V; (3)ID Drain Current, Continuous (VGS = 10V): 80A; (4)EAS Single Pulse Avalanche Energy: 1584mJ; (5)TJ, TSTG Operating and Storage Temperature Range: -40 ~ 150℃.
Features
FD6M016N03 features: (1)Very High Rectification Efficiency at Output 12V; (2)Integrated Solution for Saving Board Space; (3)RoHS Compliant.

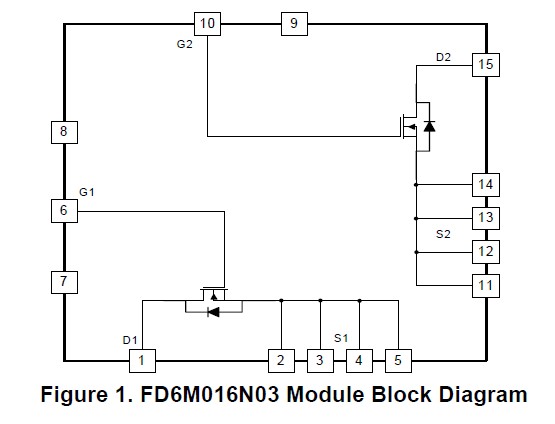

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
FD6M016N03 |
Fairchild Semiconductor |
MOSFET 30V/80A Synchronous Rectifier Module |
Data Sheet |
Negotiable |
|
|||||
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
FD6M016N03 |
Fairchild Semiconductor |
MOSFET 30V/80A Synchronous Rectifier Module |
Data Sheet |
Negotiable |
|
|||||
FD6M043N08 |
Fairchild Semiconductor |
MOSFET 75V/65A Synchronous Rectifier Module |
Data Sheet |
Negotiable |
|
|||||
FD6M045N06 |
Fairchild Semiconductor |
Rectifiers 60V/60A Synchronous Rectifier Module |
Data Sheet |
Negotiable |
|
|||||
FD6M033N06 |
Fairchild Semiconductor |
MOSFET 60V/73A Synchronous Rectifier Module |
Data Sheet |
Negotiable |
|
