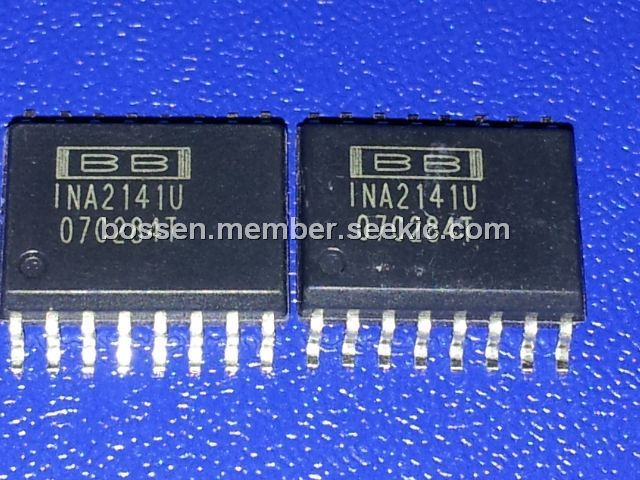

Product Summary

The INA2141U is a low power, dual instrumentation amplifier offering excellent accuracy. Its versatile 3-op amp design and small size make it ideal for a wide range of applications. Current-feedback input circuitry provides wide bandwidth even at high gain (200kHz at G = 100). Simple pin connections set an accurate gain of 10 or 100V/V without external resistors. Internal input protection can withstand up to ±40V without damage. The INA2141U is laser trimmed for very low offset voltage (50mV), drift (0.5mV/℃)and high commonmode rejection (117dB at G = 100). The INA2141U operates with power supplies as low as ±2.25V, and quiescent current is only 750mA per amplifier—ideal for battery operated systems. Packages are 16-pin plastic DIP, and SOL-16 surface-mount, specified for the –40℃ to +85℃ temperature range.

Parametrics

INA2141U absolute maximum ratings: (1)Supply Voltage: ±18V; (2)Analog Input Voltage Range: ±40V; (3)Output Short-Circuit (to ground): Continuous; (4)Operating Temperature: -40℃ to +125℃; (5)Storage Temperature: -40℃ to +125℃; (6)Junction Temperature: +150℃; (7)Lead Temperature (soldering, 10s): +300℃.

Features

INA2141U features: (1)LOW OFFSET VOLTAGE: 50μV max; (2)LOW DRIFT: 0.5mV/℃ max; (3)EXCELLENT GAIN ACCURACY: ±0.05% max at G = 10; (4)LOW INPUT BIAS CURRENT: 5nA max; (5)HIGH CMR: 117dB min (G = 100); (6)INPUTS PROTECTED TO ±40V; (7)WIDE SUPPLY RANGE: ±2.25V to ±18V; (8)LOW QUIESCENT CURRENT: 750mA/IA; (9)16-PIN PLASTIC DIP, SOL-16.

Diagrams

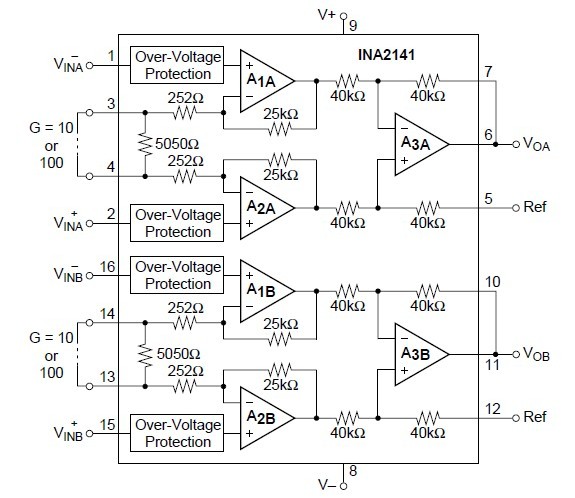

INA2141U block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
INA2141U
INA2141U

Texas Instruments

Differential Amplifiers Dual Low Power

Data Sheet

0-1: $10.38
1-25: $8.83
25-100: $8.20
100-250: $7.52
INA2141UA
INA2141UA

Texas Instruments

Differential Amplifiers Dual Low Power G = 10 100

Data Sheet

0-1: $7.50
1-25: $7.17
25-100: $5.38
100-250: $5.27
INA2141UE4
INA2141UE4

Texas Instruments

Differential Amplifiers Dual Low Power

Data Sheet

0-1: $10.38
1-25: $8.83
25-100: $8.20
100-250: $7.52
INA2141UAE4
INA2141UAE4

Texas Instruments

Differential Amplifiers Dual Low Power G = 10 100

Data Sheet

0-1: $7.75
1-25: $6.59
25-100: $6.13
100-250: $5.62
INA2141UA/1K
INA2141UA/1K

Texas Instruments

Differential Amplifiers Dual Low Power G = 10 100

Data Sheet

0-725: $4.45
725-1000: $4.19
INA2141UA/1KE4
INA2141UA/1KE4

Texas Instruments

Differential Amplifiers Dual Low Power G = 10 100

Data Sheet

0-725: $4.45
725-1000: $4.19
