Product Summary

The 2SA1943 is a TOSHIBA transistor with silicon PNP triple diffused type.

Parametrics

2SA1943 absolute maximum ratings: (1)Collector-base voltage, VCBO: -230V; (2)Collector-emitter voltage, VCEO: -230V; (3)Emitter-base voltage, VEBO: -5V; (4)Collector current, IC: -15A; (5)Base current, IB: -1.5A; (6)Collector power dissipation (Tc = 25℃), PC: 150W; (7)Junction temperature, Tj: 150℃; (8)Storage temperature range, Tstg: -55 to 150℃.

Features

2SA1943 features: (1)High collector voltage: VCEO = -230V (min); (2)Complementary to 2SC5200; (3)Recommended for 100W high-fidelity audio frequency amplifier output stage.

Diagrams

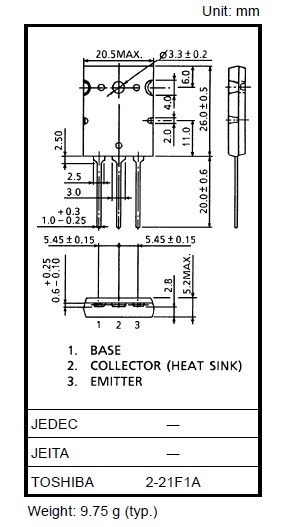

2SA1943 package dimension
