Product Summary

The FQAF16N50 is a 500V N channel MOSFET.

Parametrics

FQAF16N50 absolute maximum ratings: (1)VDSS Drain source voltage: 500V; (2)ID drain current: 11.3A; (3)IDM drain current: 45.2A; (4)VGSS gate source voltage: ±30V; (5)EAS single pulsed avalanche energy: 980mJ; (6)IAR avalance current: 11.3A; (7)EAR repetitive avalanche energy: 11mJ; (8)TJ, TSTG operating and storage temperature range: -55 to +150℃.

Features

FQAF16N50 features: (1)11.3A, 500V, RDS(on)=0.32Ω@VGS=10V; (2)Low gate charge; (3)Low crss; (4)Fast switching; (5)100% avalanche tested; (6)Improved dv/dt capability.

Diagrams

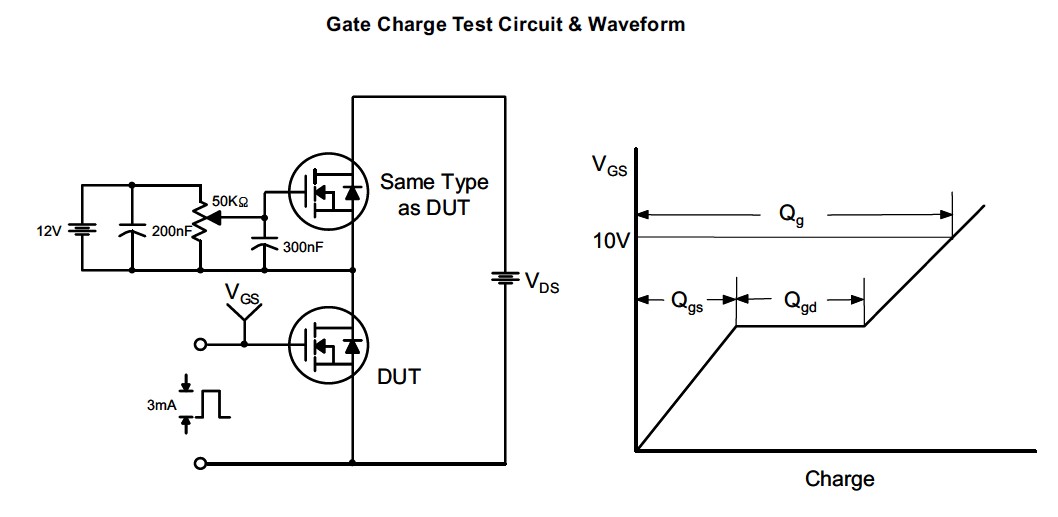

FQAF16N50 gate charge test circuit and waveform

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

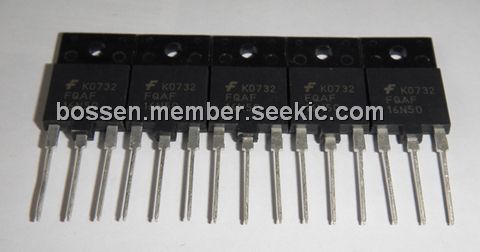

FQAF16N50
FQAF16N50
Fairchild Semiconductor
MOSFET 500V N-Channel QFET
Data Sheet
0-1: $1.92
1-25: $1.54
25-100: $1.40
100-250: $1.27
