Product Summary
The HIP2100IBZT is a high frequency, 100V Half Bridge N-Channel power MOSFET driver IC. The low-side and high-side gate drivers are independently controlled and matched to 8ns. The applications of the HIP2100IBZT include Telecom Half Bridge Power Supplies, Avionics DC-DC Converters, Two-Switch Forward Converters, Active Clamp Forward Converters.
Parametrics
HIP2100IBZT absolute maximum ratings: (1)Supply Voltage, VDD, VHB-VHS: -0.3V to 18V; (2)LI and HI Voltages: -0.3V to VDD +0.3V; (3)Voltage on LO: -0.3V to VDD +0.3V; (4)Voltage on HO: VHS -0.3V to VHB +0.3V; (5)Voltage on HS (Continuous): -1V to 110V; (6)Voltage on HB: +118V; (7)Average Current in VDD to HB diode: 100mA; (8)ESD Classification: Class 1 (1kV).
Features
HIP2100IBZT features: (1)Drives N-Channel MOSFET Half Bridge; (2)SOIC, EPSOIC, QFN and DFN Package Options; (3)SOIC, EPSOIC and DFN Packages Compliant with 100V Conductor Spacing Guidelines of IPC-2221; (4)Pb-Free Product Available (RoHS Compliant); (5)Bootstrap Supply Max Voltage to 114VDC; (6)On-Chip 1?Bootstrap Diode; (7)Fast Propagation Times for Multi-MHz Circuits; (8)Drives 1000pF Load with Rise and Fall Times Typ. 10ns.

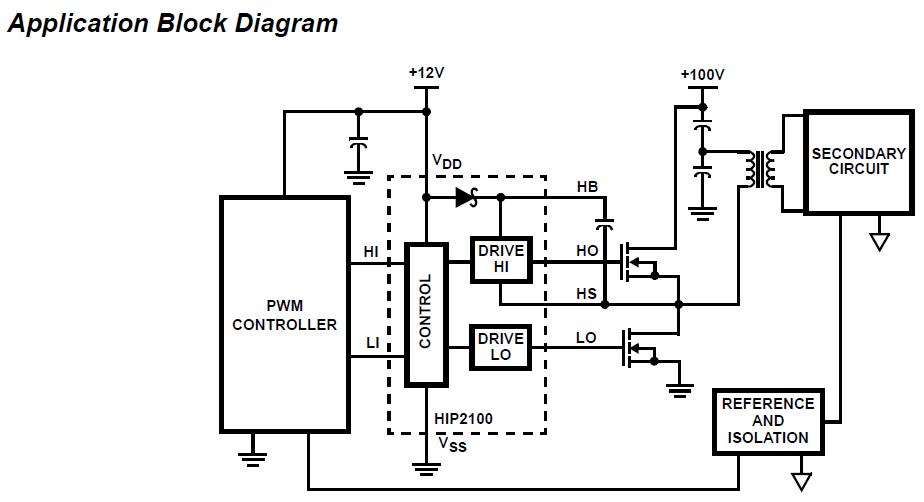

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HIP2100IBZT |
Intersil |
Power Driver ICs VER 100V H-BRDG DRVR |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
HIP2100IB |
Intersil |
Power Driver ICs 100V H-BRDG DRVR |
Data Sheet |
|
|
||||||||||||
|
HIP2100IBT |
Intersil |
Power Driver ICs TAPE AND REEL |
Data Sheet |
|
|
||||||||||||
|
HIP2100IBZ |
Intersil |
Power Driver ICs HIP2100IBZVERSION 100V HALF BRDG DRVR |
Data Sheet |
|
|
||||||||||||
|
HIP2100IBZT |
Intersil |
Power Driver ICs VER 100V H-BRDG DRVR |
Data Sheet |
|
|
||||||||||||
|
HIP2101IBZ |
Intersil |
Power Driver ICs HIP2101IBZVERSION 100V HALF BRDG DRVR |
Data Sheet |
|
|
||||||||||||
|
HIP2101IB |
Intersil |
Power Driver ICs 100V H-BRDG DRVR |
Data Sheet |
|
|
||||||||||||
