Product Summary

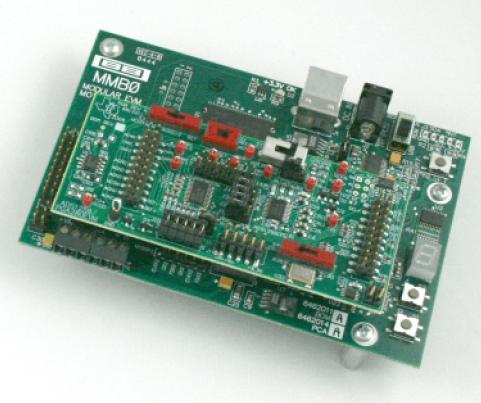

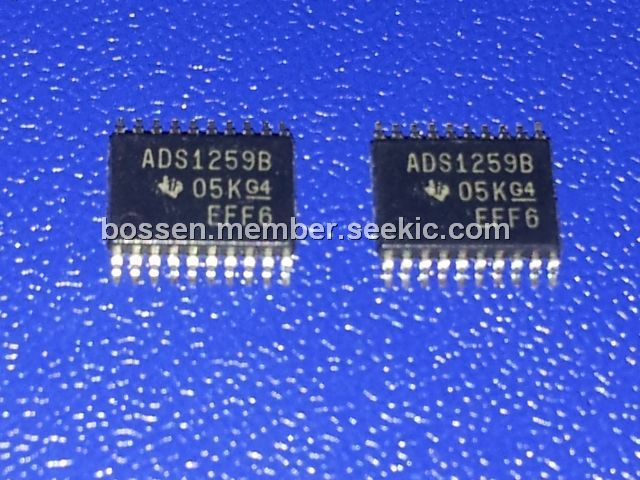

The ADS1259 is a high-linearity, low-drift, 24-bit, analog-to-digital converter (ADC) designed for the needs of industrial process control, precision instrumentation, and other exacting applications. The ADS1259 also provides an integrated low-noise, very low drift 2.5V reference. The on-chip oscillator, an external crystal, or an external clock can by used as the ADC clock source. The applications of the ADS1259 are Industrial Process Control, Scientific Instrumentation, Test and Measurement.

Parametrics

ADS1259 absolute maximum ratings: (1)AVDD to AVSS:–0.3 to +5.5V; (2)AVSS to DGND:–2.8 to +0.3V; (3)DVDD to DGND:–0.3 to +5.5V; (4)Input current, momentary:–100 to +100 mA; (5)Input current, continuous:–10 to +10 mA; (6)Analog input voltage to DGND:AVSS –0.3 to AVDD + 0.3V; (7)Digital input voltage to DGND:–0.3 to DVDD + 0.3V; (8)Maximum junction temperature:+150℃; (9)Operating temperature range:–40℃ to +125℃; (10)Storage temperature range:–60℃ to +150℃.

Features

ADS1259 features: (1)Simultaneous 50/60Hz Rejection at 10SPS; (2)Single-Cycle Settling; (3)Internal Oscillator; (4)Out-of-Range Detection; (5)Readback Data Integrity by Checksum and; (6)Redundant Data Read Capability; (7)SPI-Compatible Interface; (8)Analog Supply: +5V or ±2.5V; (9)Digital Supply: +2.7V to +5V; (10)Low Power: 13mW; (11)24 Bits, No Missing Codes; (12)Output Data Rates From 10 To 14kSPS; (13)High Performance.

Diagrams

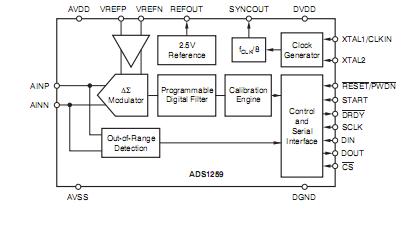

ADS1259 block diagram
