Product Summary

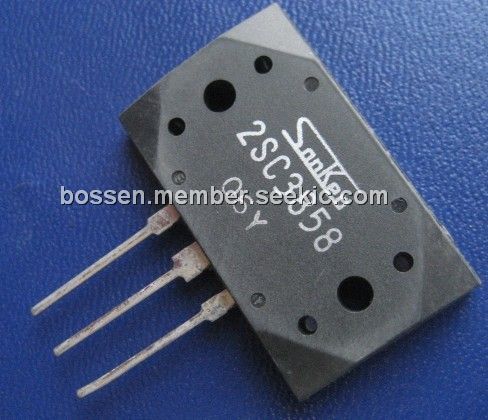

The 2SC3858 is a Silicon NPN triple diffused planar transistor for audio and general purpose.
Parametrics
2SC3858 absolute maximum ratings: (1)VCBO: 200v; (2)VCEO: 200v; (3)VEBO: 6v; (4)IC: 17A; (5)IB: 5A; (6)PC: 200(Tc=25℃)w; (7)Tj: 150℃; (8)Tstg: –55 to +150℃.
Features
2SC3858 electrical characteristics: (1)ICBO at VCB=200V: 100max uA; (2)IEBO at VEB=6V: 100max uA; (3)V(BR)CEO at IC=50mA: 200min V; (4)hFE at VCE=4V, IC=8A: 50min; (5)VCE(sat) at IC=10A, IB=1A: 2.5max v; (6)fT at VCE=12V, IE=–1A: 20typ MHZ; (7)COB at VCB=10V, f=1MHz: 300typ pF.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SC3858 |
Other |
|
Data Sheet |
Negotiable |
|
||||
