Product Summary
The DSSK70-008A is a power schottky rectifier with common cathode. The applications of the DSSK70-008A are: High reliability circuit operation; Low voltage peaks for reduced protection circuits; Low noise switching; Low losses.
Parametrics
DSSK70-008A absolute maximum ratings: (1)TVJ: -55 to +175 ℃; (2)TVJM: 175 ℃; (3)Tstg: -55 to +150 ℃; (4)Ptot TC = 25℃: 190 W; (5)Md mounting torque: 0.8 to 1.2 Nm.
Features
DSSK70-008A features: (1)International standard package; (2)Very low VF; (3)Extremely low switching losses; (4)Low IRM-values; (5)Epoxy meets UL 94V-0.

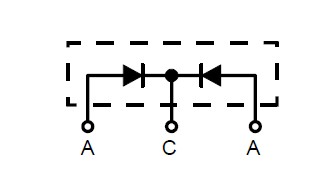

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

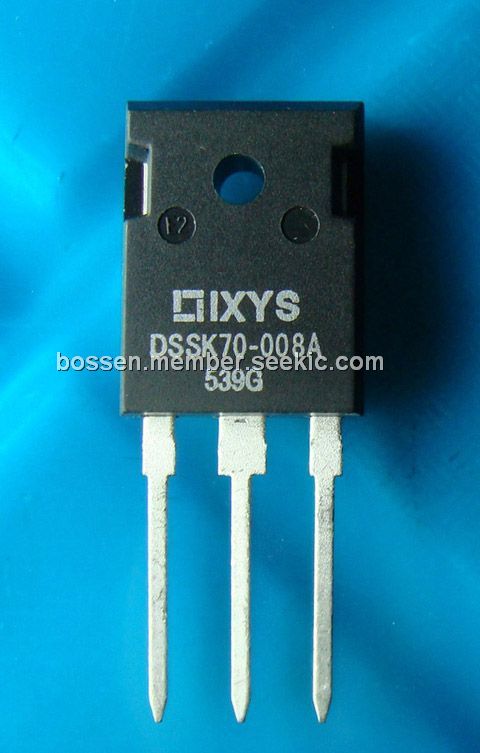

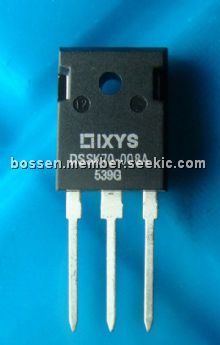

 DSSK70-008A |
Ixys |
Schottky (Diodes & Rectifiers) 70 Amps 80V |
Data Sheet |
Negotiable |
|
||||
 |

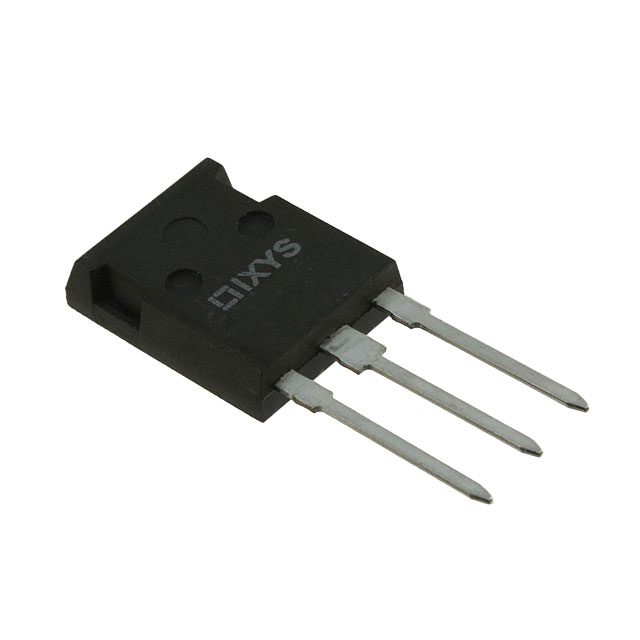

DSSK70-008AR |
Ixys |
Schottky (Diodes & Rectifiers) 70 Amps 80V |
Data Sheet |
Negotiable |
|
||||
