Product Summary

The DSEP60-06A is a HiPerFREDTM epitaxial diode with soft recovery. The applications of the DSEP60-06A are: Antiparallel diode for high frequency switching devices; Antisaturation diode; Snubber diode; Free wheeling diode in converters and motor control circuits; Rectifiers in switch mode power supplies (SMPS); Inductive heating; Uninterruptible power supplies (UPS); Ultrasonic cleaners and welders.

Parametrics

DSEP60-06A absolute maximum ratings: (1)IAR VA = 1.5·VR typ.; f = 10 kHz; repetitive: 0.2 A; (2)TVJ: -55 to +175 ℃; (3)TVJM: 175 ℃; (4)Tstg: -55 to +150 ℃; (5)Ptot TC = 25℃: 230 W; (6)Md mounting torque: 0.8 to 1.2 Nm; (7)IFSM TVJ = 45℃; tp = 10 ms (50 Hz), sine: 600 A; (8)EAS TVJ = 25℃; non-repetitive 0.3 mJ.

Features

DSEP60-06A features: (1)International standard package; (2)Planar passivated chips; (3)Very short recovery time; (4)Extremely low switching losses; (5)Low IRM-values; (6)Soft recovery behaviour; (7)Epoxy meets UL 94V-0.

Diagrams

DSEP60-06A simplified diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

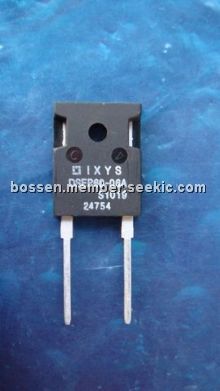

DSEP60-06A
DSEP60-06A

Ixys

Rectifiers 60 Amps 600V

Data Sheet

Negotiable
DSEP60-06AT
DSEP60-06AT

Ixys

Rectifiers 60 Amps 600V 2.04 Rds

Data Sheet

Negotiable
