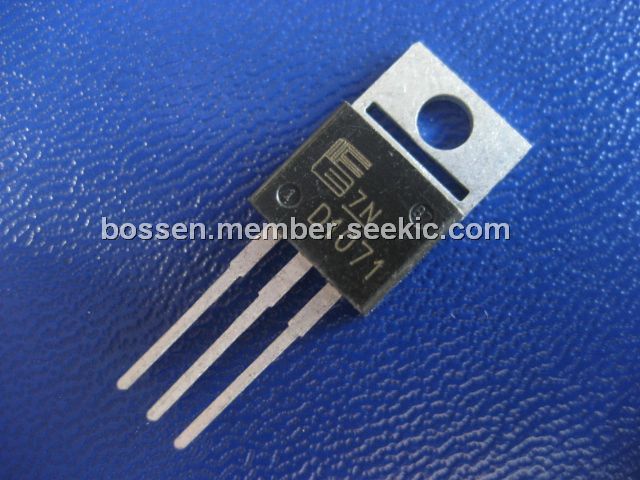

Product Summary

The 2SD1071 is a ultra high β transistor. The applications of the 2SD1071 include Audio power amplifiers, Relay & solenoid drivers, Motor controls, General purpose power amplifiers, Including zener diode

Parametrics

2SD1071 absolute maximum ratings: (1)Collector-Base voltage: 450 V; (2)Collector-Emitter voltage: 450 V; (3)Collector-Emitter voltage: 300 V; (4)Emitter-Base voltage: 6 V; (5)Zener voltage: 300 V; (6)Collector current: 6 A; (7)Base current: 2.5 A; (8)Collector power disspation: 40 W; (9)Operating junction temperature: +150 ℃; (10)Storage temperature: -40 to +150 ℃.

Features

2SD1071 features: (1)High D.C. current gain; (2)Low saturation voltage; (3)High reliability.

Diagrams

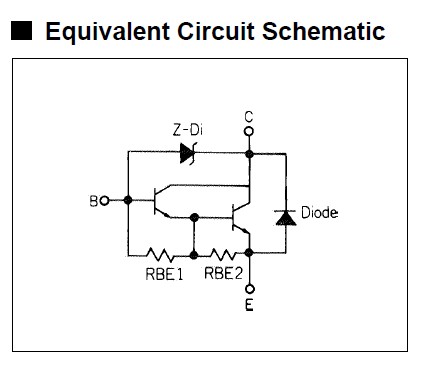

2SD1071 Equivalent Circuit Schematic
