Product Summary
The DSEI30-06A is a fast recovery epitaxial diode. The applications of the DSEI30-06A are: Antiparallel diode for high frequency switching devices; Anti saturation diode; Snubber diode; Free wheeling diode in converters and motor control circuits; Rectifiers in switch mode power supplies (SMPS); Inductive heating and melting; Uninterruptible power supplies (UPS); Ultrasonic cleaners and welders.
Parametrics
DSEI30-06A absolute maximum ratings: (1)TVJ: -40 to +150℃; (2)TVJM: 150℃; (3)Tstg: -40 to +150℃; (4)Ptot TC = 25℃: 125 W; (5)Md Mounting torque: 0.8 to 1.2 Nm.
Features
DSEI30-06A features: (1)International standard package JEDEC TO-247 AD; (2)Planar passivated chips; (3)Very short recovery time; (4)Extremely low switching losses; (5)Low IRM-values; (6)Soft recovery behaviour; (7)Epoxy meets UL 94V-0.

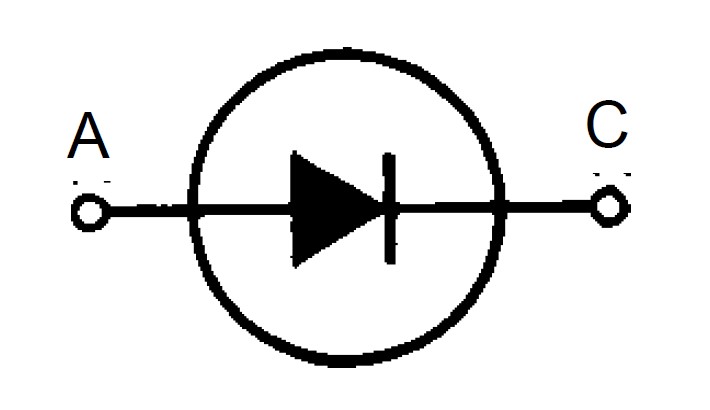

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() DSEI30-06A |
![]() Ixys |
![]() Rectifiers 600V 37A |
![]() Data Sheet |
![]() Negotiable |
|
||||||
