Product Summary

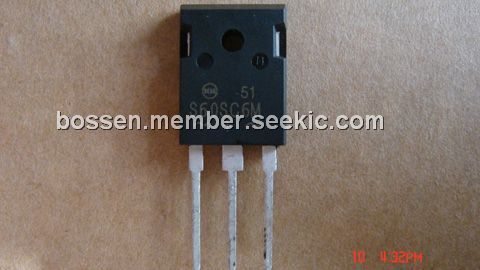

The S60SC6M is a 60V 60A schottky rectifier (SBD).
Parametrics
S60SC6M absolute maximum ratings: (1)Storage temperature, Tstg: -40 to 150℃; (2)Operating junction temperature, Tj: 150℃; (3)Maximum junction voltage, VRM: 60V; (4)Repetitive peak surge reverse voltage, VRRSM: 65V; (5)Average rectified forward voltage, VRRSM: 65V; (6)Peak surge forward current. ISFSM: 500A.
Features
S60SC6M features: (1)Tj 150℃; (2)PRRSM avalanche guaranteed; (3)Small θjc; (4)High current capacity.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 S60SC6M |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
S60SC6M-4100 |
Shindengen |
Schottky (Diodes & Rectifiers) VRM=60 IFSM=500 |
Data Sheet |
Negotiable |
|
||||
|
S60SC6M-7100 |
Shindengen |
Schottky (Diodes & Rectifiers) VRM=60 IFSM=500 |
Data Sheet |
Negotiable |
|
||||
|
S60SC6M-7112 |
Shindengen |
Schottky (Diodes & Rectifiers) VRM=60 IFSM=500 |
Data Sheet |
Negotiable |
|
||||
|
S60SC6M-4112 |
Shindengen |
Schottky (Diodes & Rectifiers) VRM=60 IFSM=500 |
Data Sheet |
Negotiable |
|
||||
