Product Summary

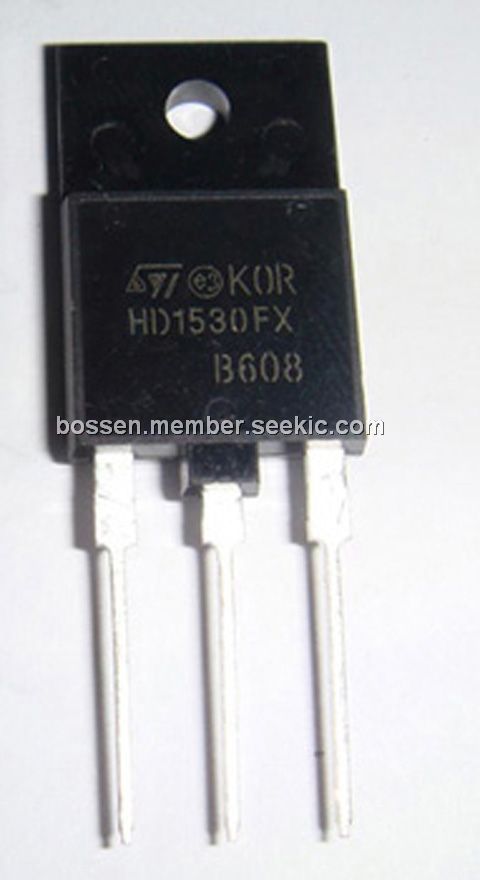

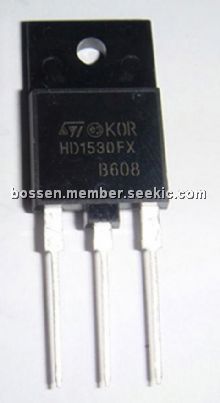

The HD1530FX is a high voltage NPN power transistor for high definition and new super-slim CRT display. The HD1530FX uses a Diffused Collector in Planar technology which adopts Enhanced High Voltage Structure (EHVS1) that was developed to fit High-Definition CRT displays. The new HD product HD1530FX features improved silicon efficiency, bringing updated performance to Horizontal Deflection output stages.
Parametrics
HD1530FX absolute maximum ratings: (1)VCES Collector-Emitter Voltage (VBE = 0): 1500 V; (2)VCEO Collector-Emitter Voltage (IB = 0): 700 V; (3)VEBO Emitte-Base Voltage (IC = 0): 10 V; (4)IC Collector Current: 26 A; (5)ICM Collector Peak Current (tP < 5ms): 40 A; (6)IB Base Current: 10 A; (7)IBM Base Peak Current (tP < 5ms): 20 A; (8)PTOT Total dissipation at Tc = 25℃: 70 W; (9)TSTG Storage Temperature: -65 to 150 ℃; (10)TJ Max. Operating Junction Temperature: 150 ℃.
Features
HD1530FX features: (1)State-of-the-art technology: diffused collector enhanced generation EHVS1; (2)Wider range of optimum drive conditions; (3)Less sensitive to operating temperature variation; (4)Fully insulated power package which is ul compliant.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HD1530FX |
STMicroelectronics |
Transistors Switching (Resistor Biased) HI VLT NPN PWR TRANS HI DEF |
Data Sheet |
Negotiable |
|
||||||
