Product Summary

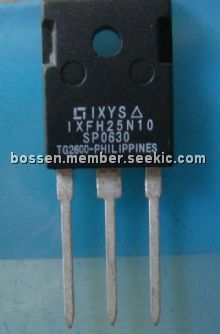

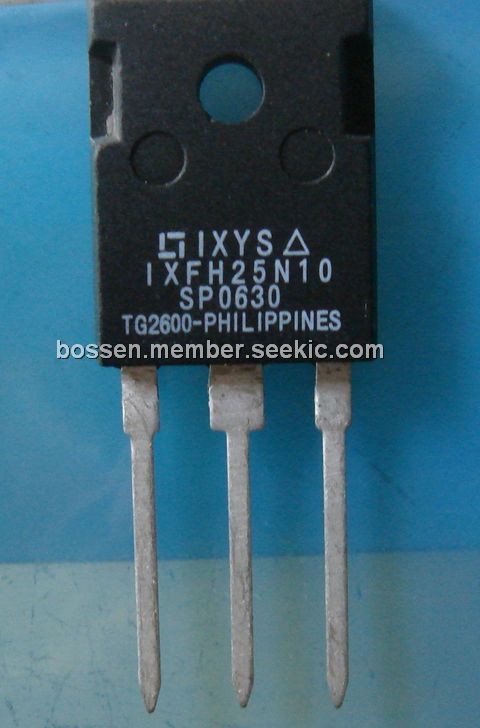

The IXFH25N10 is a HIPERFET power MOSFTET. The IXFH25N10 is designed to provide superior dv/dt performence while eliminating the need for discrete, fast recovery free wheeling rectifiers in a broad range of power switching applications. The new dress of the IXFH25N10 uses process which improves the ruggedness of the FET while reducing the reverse recovery time of the intrinsic rectifier to less than 250ns at clevated junction temperature.

Parametrics

IXFH25N10 absolute maximum ratings: (1)Drain source voltage: 100V; (2)Drain current: 25A; (3)On resistance: 0.030Ohms; (4)Power Diss: 125W.

Diagrams

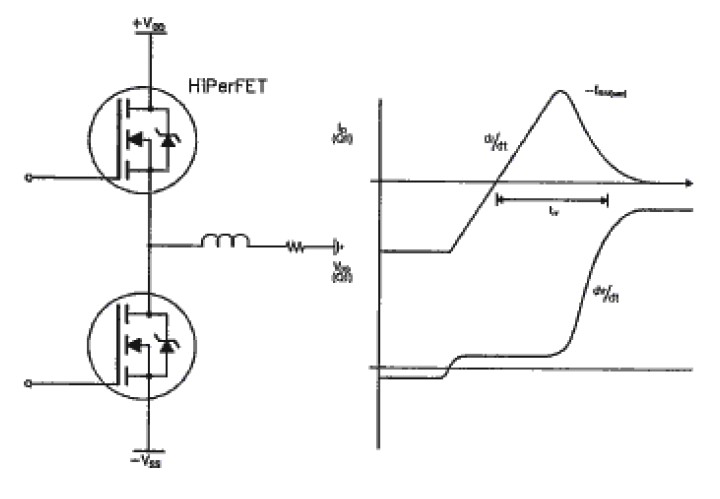

IXFH25N10 circuit diaram
