Product Summary

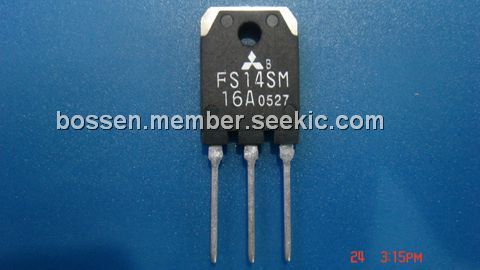

The FS14SM-16A is a MITSUBISHI Nch power MOSFET. The application of the FS14SM-16A are: SMPS, DC-DC Converter, battery charger, power supply of printer, copier, HDD, FDD, TV, VCR, personal computer etc.
Parametrics
FS14SM-16A absolute maximum ratings: (1)Drain-source voltage VDSS: 800V; (2)Gate-source voltage VGSS: ±30V; (3)Drain current ID: 14A; (4)Drain current (Pulsed) IDM: 42A; (5)Maximum power dissipation PD: 275W; (6)Channel temperature Tch: –55 ~ +150℃; (7)Storage temperature Tstg: –55 ~ +150℃.
Features
FS14SM-16A features: (1)VDSS 800V; (2)rDS (ON) (MAX) 0.70W; (3)ID 14A.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 FS14SM-16A |
Other |
|
Data Sheet |
Negotiable |
|
||||
