Product Summary

The AN7134NR is a monlithic integrated circuit designed for dual audio high power amplifiers for radio cassette redorder with CD, 9V/5V regulator and LED driver, interlocked with standby fuction, allow you to control all system power supply with the AN7134NR.

Parametrics

AN7134NR absolute maximum ratings: (1)supply voltage, Vcc: 24V; (2)supply current, Icc: 6A; (3)power dissipation, Pd: 62.5W; (4)operating ambient tempreture, Topr: -25 to 75℃; (5)storage tempreture, Tstg: -55 to 150℃.

Features

AN7134NR features: (1)audio output 7.5W x2ch; (2)LED driver built-in; (3)with stand by function; (4)multing function built in; (5)wide operating supply voltage.

Diagrams

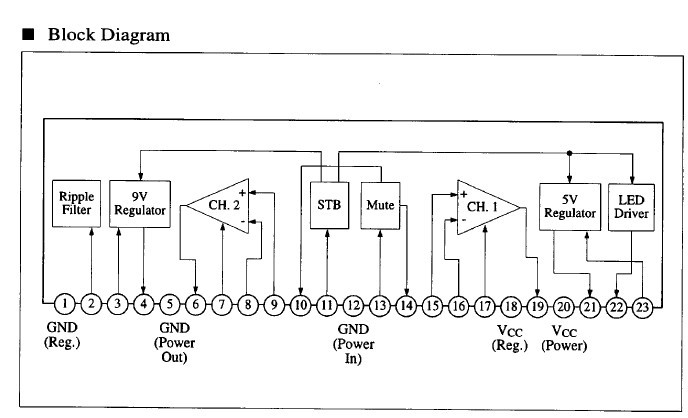

AN7134NR block diagram
