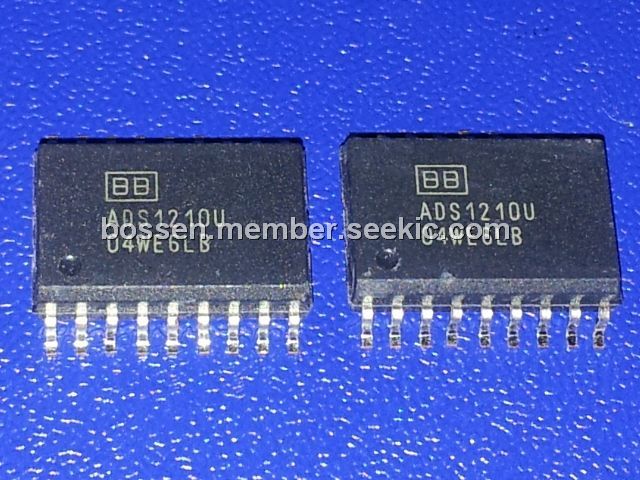

Product Summary
The ADS1210U is a precision, wide dynamic range, delta-sigma analog-to-digital converter with 24-bit resolution operating from a single +5V supply. The ADS1210U is designed for high resolution measurement applications in smart transmitters, industrial process control, weigh scales, chromatography and portable instrumentation. The applications of the ADS1210U are industrial process control, instrumentation, blood analysis, smart transmitters, portable instruments, weigh scales, pressure transducers.
Parametrics
ADS1210U absolute maximum ratings: (1)AVDD to DVDD:–0.3V to 6V; (2)AVDD to AGND:–0.3V to 6V; (3)DVDD to DGND:–0.3V to 6V; (4)AGND to DGND:±0.3V; (5)REFIN Voltage to AGND:–0.3V to AVDD +0.3V; (6)Digital Input Voltage to DGND:–0.3V to DVDD +0.3V; (7)Digital Output Voltage to DGND:–0.3V to DVDD +0.3V; (8)Lead Temperature (soldering, 10s):+300℃; (9)Power Dissipation (Any package):500mW.
Features
ADS1210U features: (1)delta-sigma a/d converter; (2)23 bits effective resolution at 10Hz and 20 bits at 1000Hz; (3)differential inputs; (4)programmable gain amplifier; (5)flexible spi compatible ssi; (6)interface with 2-wire mode; (7)programmable cut-off frequency up to 15.6kHz; (8)internal/external reference; (9)on chip self-calibration; (10)ads1211 includes 4 channel mux.

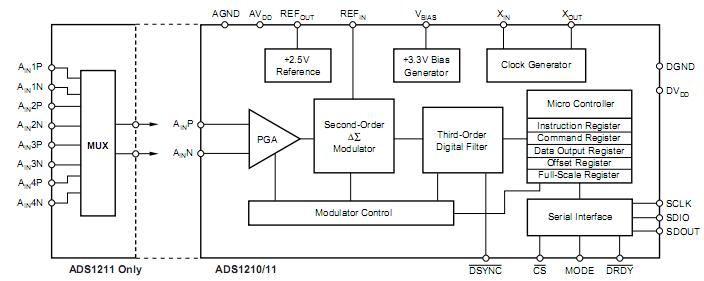

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADS1210U |
Texas Instruments |
ADC (A/D Converters) 24-Bit Anlg-to-Dig Converter |
Data Sheet |
|
|
||||||||||||
|
ADS1210U/1K |
Texas Instruments |
ADC (A/D Converters) 24-Bit Anlg-to-Dig Converter |
Data Sheet |
|
|
||||||||||||
|
ADS1210U/1KG4 |
Texas Instruments |
ADC (A/D Converters) 24-Bit Anlg-to-Dig Converter |
Data Sheet |
|
|
||||||||||||
|
ADS1210UG4 |
Texas Instruments |
ADC (A/D Converters) 24-Bit Anlg-to-Dig Converter |
Data Sheet |
|
|
||||||||||||
