Product Summary
The 60EPF06 is a fast soft recovery rectifier diode. The 60EPF06 fast soft recovery quietir rectifier series has been optimized for combined short reverse recovery time and low forward voltage drop. The glass passivation of the 60EPF06 ensures stable reliable operation in the most severe temperature and power cycling conditions.
Parametrics
60EPF06 absolute maximum ratings: (1)IF(AV) Sinusoidal waveform 60 A; (2)VRRM 200 to 600 V; (3)IFSM 830 A; (4)VF @30 A, TJ = 25℃ 1.1 V; (5)trr @ 1A, 100A/μs 70 ns; (6)TJ - 40 to 150 ℃.
Features
60EPF06 features: (1)Output rectification and freewheeling in inverters, choppers and converters; (2)Input rectifications where severe restrictions on conducted EMI should be met.

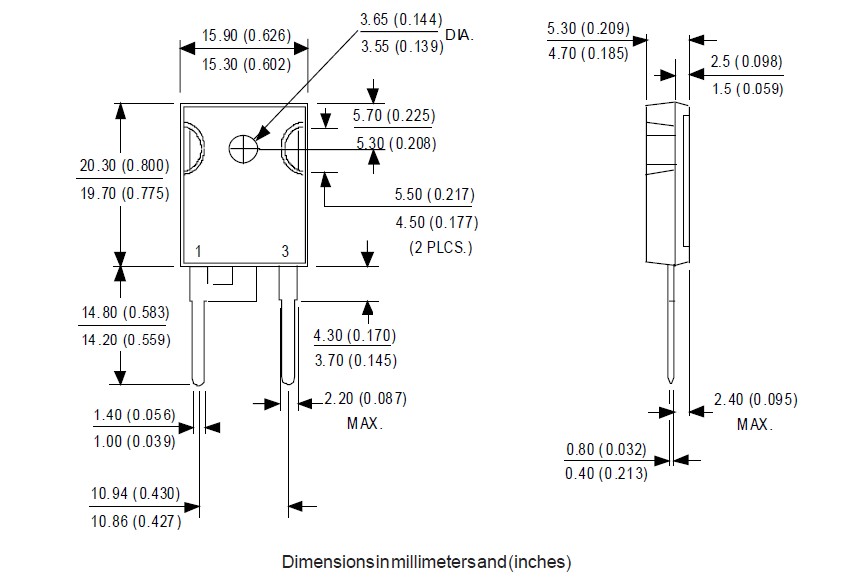

Diagrams

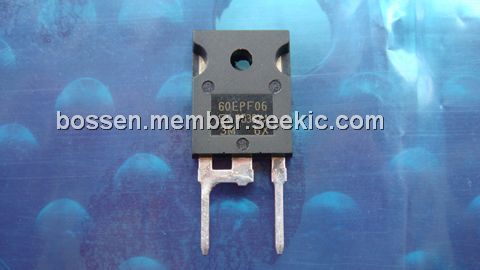

| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 60EPF06 |
Vishay Semiconductors |
Rectifiers 600 Volt 60 Amp |
Data Sheet |
Negotiable |
|
||||||||||||||||||||||
|
60EPF06PBF |
|
DIODE FAST REC 600V 60A TO247AC |
Data Sheet |
|
|
||||||||||||||||||||||
