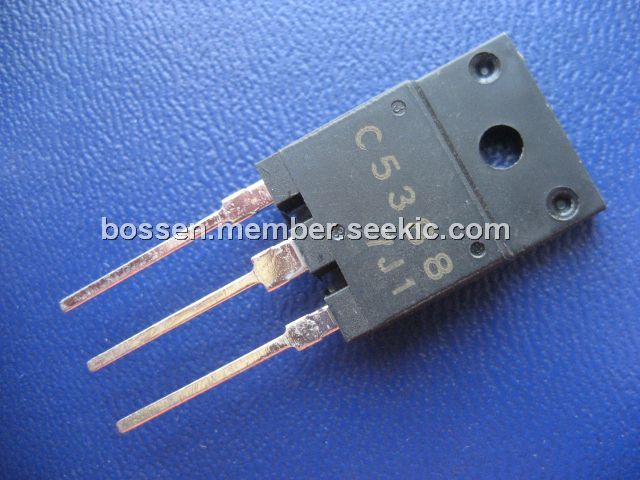

Product Summary
The 2SC5388 is a Sanyo semicon device widely used in high-voltage switching application.
Parametrics
2SC5388 absolute maximum ratings: (1)Collector-to-Base Voltage, VCBO: 1500V; (2)Collector-to-Emitter Voltage, VCEO: 700V; (3)Emitter-to-Base Voltage, VEBO: 5V; (4)Collector Current, IC: 5A; (5)Collector Current (Pulse), ICP: 10A; (6)Base Current, IB: 1A; (7)Collector Dissipation, PC: 3.0W; (8)Junction Temperature, Tj: 150℃; (9)Storage Temperature, Tstg: –55 to +150℃.
Features
2SC5388 features: (1)High speed (Adoption of MBIT process); (2)High breakdown voltage (VCBO=1500V); (3)High reliability (Adoption of HVP process); (4)On-chip damper diode.

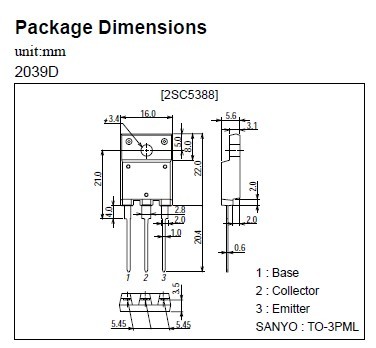

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
2SC5388 |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
