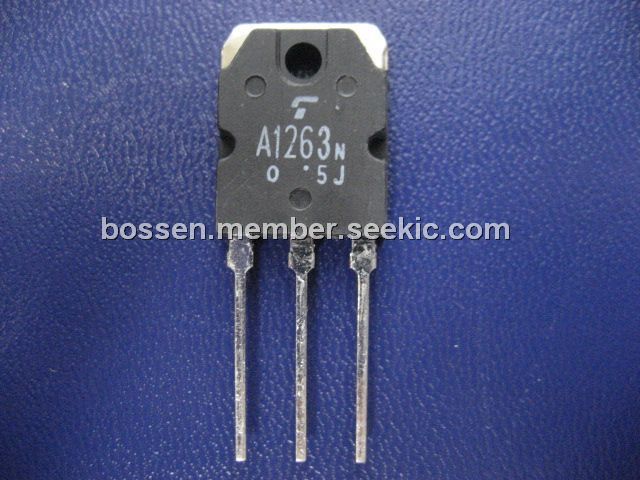

Product Summary

The 2SA1263 is a transistor with silicon pnp triple diffused type.

Parametrics

2SA1263 absolute maximum ratings: (1)VCBO, Collector-base voltage: -80 V; (2)VCEO, Collector-emitter voltage: -80 V; (3)VEBO, Emitter-base voltage: -5 V; (4)IC Collector current: -6 A; (5)IB, Base current: -0.6 A; (6)PC, Collector power dissipation TC=25℃: 60 W ; (7)Tj, Junction temperature: 150 ℃ ; (8)Tstg, Storage temperature: -55~150 ℃.

Features

2SA1263 features: (1)complementary to 2SC3180; (2)recommend for 40w high fidelity audio frequency amplifier output stage.

Diagrams

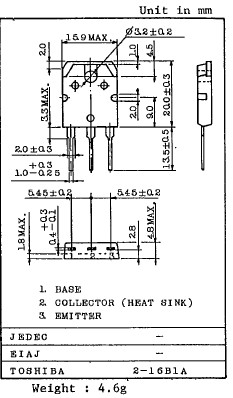

2SA1263 dimension
