Product Summary
The SUD25N06-45L-E3 is a N-channel 60V MOSFET.
Parametrics
SUD25N06-45L-E3 absolute maximum ratings: (1)Pulsed Drain Current IDM: 30 A; (2)Continuous Source Current (Diode Conduction) IS: 25; (3)Avalanche Current IAR: 25; (4)Repetitive Avalanche Energy (Duty Cycle 1%) L = 0.1 mH EAR: 31 mJ; (5)Maximum Power Dissipation TC = 25℃ PD: 50W; (6)TA = 25℃: 2.5a; (7)Operating Junction and Storage Temperature Range TJ, Tstg: 55 to 175 ℃.
Features
SUD25N06-45L-E3 features: (1)VDS 60V; (2)rDS(on) 0.035Ω @ VGS = 10 V, 0.045Ω @ VGS = 4.5 V; (3)ID 25A.

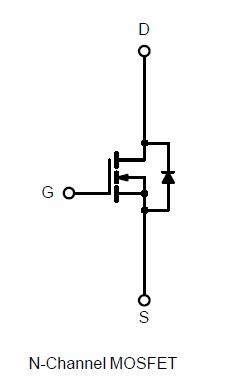

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SUD25N06-45L-E3 |
Vishay/Siliconix |
MOSFET 60V 25A 50W |
Data Sheet |
Negotiable |
|
||||||||||||
