Product Summary

The PACUSB200Q USB is a four wire system utilizing a two wire twisted pair for transferring data, and two lines to supply power and ground connection to hubs and devices. The PACUSB200Q allows for two modes of signaling. The low speed mode of the PACUSB200Q is defined at 1.5Mb/s with the full speed at 12Mb/s. The applications of the PACUSB200Q include Workstations, notebooks and desktop computers, USB hubs, Set-top boxes.

Features

PACUSB200Q features: (1)Provides high performance EMI/RFI filtering; (2)Bi-directional ESD protection circuitry for optimum system protection; (3)Small package size; (4)USB 1.1 compliant.

Diagrams

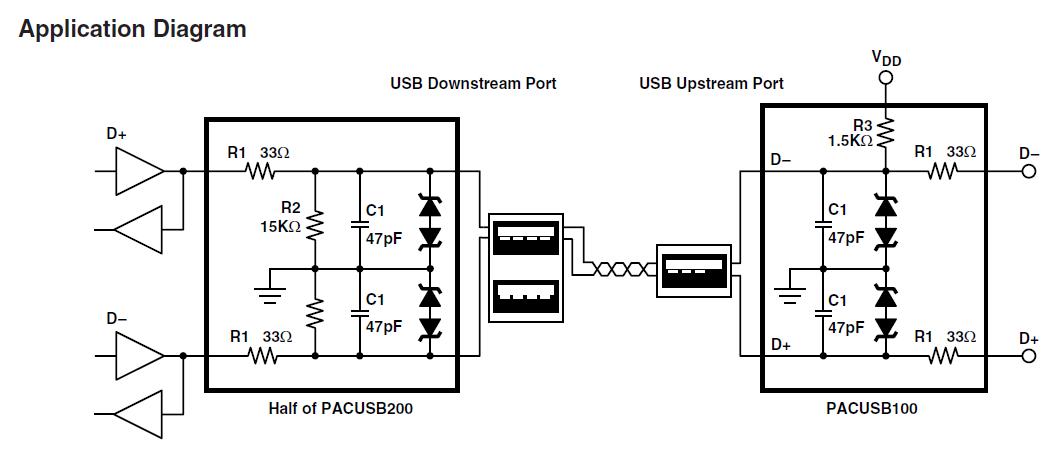

PACUSB200Q application diagram

PACUSB-D1Y5R
PACUSB-D1Y5R

ON Semiconductor

Interface - Specialized Downstream USB Port Terminator

Data Sheet

Negotiable
PACUSB-D1YB5R
PACUSB-D1YB5R

ON Semiconductor

Interface - Specialized Downstream USB Port Terminator

Data Sheet

Negotiable
PACUSB-D2YB5R
PACUSB-D2YB5R

ON Semiconductor

Interface - Specialized Downstream USB Port Terminator

Data Sheet

Negotiable
PACUSB-U3R
PACUSB-U3R

ON Semiconductor

Interface - Specialized USB w/ ESD 22 Ohms

Data Sheet

0-1: $0.22
1-50: $0.20
50-100: $0.18
100-500: $0.16
PACUSB-U1R
PACUSB-U1R

ON Semiconductor

Interface - Specialized USB Terminator EMI Filter with ESD

Data Sheet

Negotiable
PACUSB-U2Y6R
PACUSB-U2Y6R

ON Semiconductor

Interface - Specialized USB Upstream Termina

Data Sheet

Negotiable
