Product Summary
The OPA4374 is a 6.5MHz, 585μA, rail-to-rail I/O CMOS operational amplifier. The OPA4374 operational amplifier is low power and low cost with excellent bandwidth (6.5MHz) and slew rate (5V/μs). The input range extends 200mV beyond the rails and the output range is within 25mV of the rails. Their speed/power ratio and small size make them ideal for portable and battery-powered applications. The OPA4374 includes a shutdown mode. Under logic control, the amplifiers can be switched from normal operation to a standby current that is less than 1μA.
Parametrics
OPA4374 absolute maximum ratings: (1)Supply Voltage: +7.0V; (2)Signal Input Terminals, Voltage: -0.5V to (V+) + 0.5V; (3)Current: ±10mA; (4)Output Short-Circuit: Continuous; (5)Operating Temperature: 55℃ to +150℃; (6)Storage Temperature: 65℃ to +150℃; (7)Junction Temperature: +150℃; (8)Lead Temperature (soldering, 10s): +300℃.
Features
OPA4374 features: (1)Low offset: 5mV (max); (2)Low IB: 10pA (max); (3)High bandwidth: 6.5MHz; (4)Rail-to-rail input and output; (5)Single supply: +2.3V to +5.5V; (6)shutdown: OPAx373; (7)Specified up to +125℃; (8)Micro size packages: SOT23-5, SOT23-6, and SOT23-8.

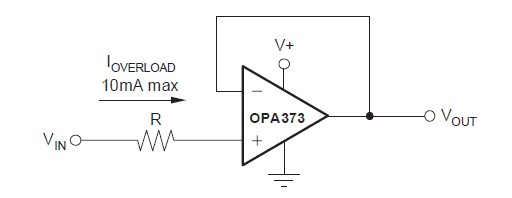

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 OPA4374 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
OPA4374AID |
Texas Instruments |
Operational Amplifiers - Op Amps Quad 6.5MHz 585uA R-to-R I/O CMOS |
Data Sheet |
|
|
||||||||||||
|
OPA4374AIDG4 |
Texas Instruments |
Operational Amplifiers - Op Amps Quad 6.5MHz 585uA R-to-R I/O CMOS |
Data Sheet |
|
|
||||||||||||
|
OPA4374AIPWR |
Texas Instruments |
Operational Amplifiers - Op Amps Quad 6.5MHz 585uA R-to-R I/O CMOS |
Data Sheet |
|
|
||||||||||||
|
OPA4374AIDR |
Texas Instruments |
Operational Amplifiers - Op Amps Quad 6.5MHz 585uA R-to-R I/O CMOS |
Data Sheet |
|
|
||||||||||||
|
OPA4374AIDRG4 |
Texas Instruments |
Operational Amplifiers - Op Amps Quad 6.5MHz 585uA R-to-R I/O CMOS |
Data Sheet |
|
|
||||||||||||
|
OPA4374AIPWT |
Texas Instruments |
Operational Amplifiers - Op Amps Quad 6.5MHz 585uA R-to-R I/O CMOS |
Data Sheet |
|
|
||||||||||||
|
OPA4374AIPWTG4 |
Texas Instruments |
Operational Amplifiers - Op Amps Quad 6.5MHz 585uA R-to-R I/O CMOS |
Data Sheet |
|
|
||||||||||||
