Product Summary

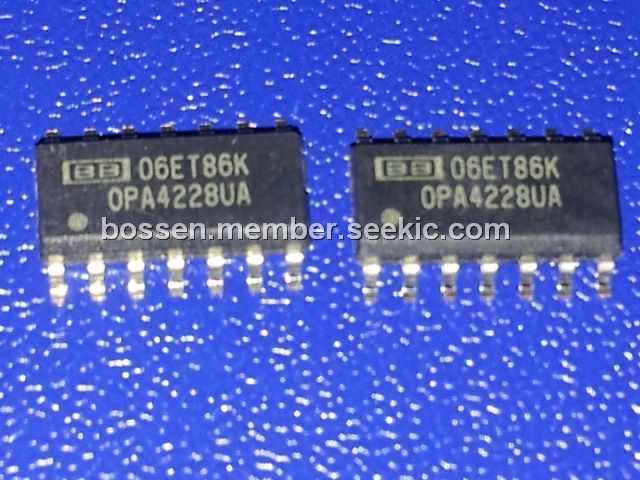

The OPA4228UA is a high precision, low noise operational amplifier. The OPA4228UA op amp combines low noise and wide bandwidth with high precision to make them the ideal choice for applications requiring both ac and precision dc performance. The OPA4228UA is unity-gain stable and features high slew rate (2.3V/μs) and wide bandwidth (8MHz). The OPA228 is optimized for closed-loop gains of 5 or greater, and offers higher speed with a slew rate of 10V/μs and a bandwidth of 33MHz.
Parametrics
OPA4228UA absolute maximum ratings: (1)Supply Voltage: ±18V; (2)Signal Input Terminals, Voltage: (V–) –0.7V to (V+) +0.7V; (3)Current: 20mA; (4)Output Short-Circuit: Continuous; (5)Operating Temperature: –55℃ to +125℃; (6)Storage Temperature: –65℃ to +150℃; (7)Junction Temperature: 150℃; (8)Lead Temperature (soldering, 10s): 300℃.
Features
OPA4228UA features: (1)Low noise: 3nV/√Hz; (2)Wide bandwidth: 33MHz, 10V/μs; (3)Settling time: 5μs(significant improvement over OP-27); (4)High cmrr: 138dB; (5)High open-loop gain: 160dB; (6)Low input bias current: 10nA max; (7)Low offset voltage: 75μV max; (8)Wide supply range: ±2.5V to ±18V.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 OPA4228UA |
Texas Instruments |
Operational Amplifiers - Op Amps High Prec Low Noise Oper Amplifier |
Data Sheet |
|
|
||||||||||||
|
OPA4228UA/2K5 |
Texas Instruments |
Operational Amplifiers - Op Amps High Prec Low Noise Oper Amplifier |
Data Sheet |
|
|
||||||||||||
|
OPA4228UAE4 |
Texas Instruments |
Operational Amplifiers - Op Amps High Prec Low Noise Oper Amplifier |
Data Sheet |
|
|
||||||||||||
|
OPA4228UA/2K5G4 |
Texas Instruments |
Operational Amplifiers - Op Amps OP AMP QUAD Lo NOISE HI SPD PREC |
Data Sheet |
|
|
||||||||||||
