Product Summary

The IRF7493TRPBF is a HEXFET Power MOSFET. The applications of the IRF7493TRPBF include High frequency DC-DC converters, Lead-Free.

Parametrics

IRF7493TRPBF absolute maximum ratings: (1)Drain-to-Source Voltage: 80 V; (2)Gate-to-Source Voltage: ±20 V; (3)ID @ TC = 25℃, Continuous Drain Current, VGS @ 10V: 9.3 A; (4)ID @ TC = 70℃ Continuous Drain Current, VGS @ 10V: 7.4 A; (5)Pulsed Drain Current: 74 A; (6)PD @TC = 25℃, Maximum Power Dissipation: 2.5 W; (7)PD @TC = 70℃, Maximum Power Dissipation: 1.6 W; (8)Linear Derating Factor: 0.02 W/℃; (9)Operating Junction and Storage Temperature Range: -55 to +150 ℃.

Features

IRF7493TRPBF features: (1)Low Gate-to-Drain Charge to Reduce Switching Losses; (2)Fully Characterized Capacitance Including Effective COSS to Simplify Design; (3)Fully Characterized Avalanche Voltage and Current.

Diagrams

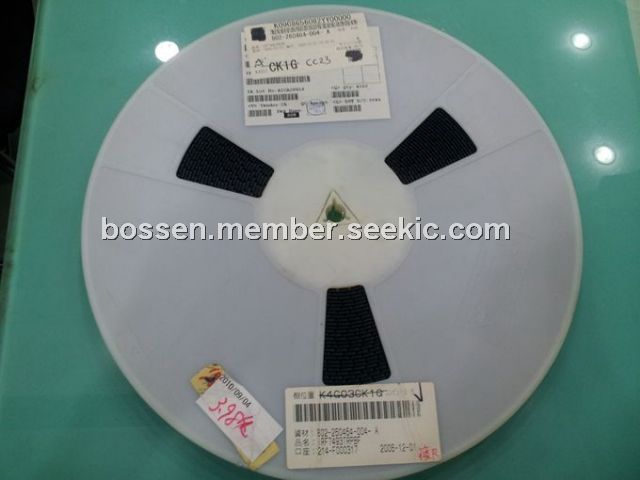

IRF7493TRPBF diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
IRF7493TRPBF
IRF7493TRPBF
International Rectifier
MOSFET MOSFT 80V 9.2A 15mOhm 31nC Qg
Data Sheet
0-1: $1.27
1-25: $0.78
25-100: $0.54
100-250: $0.51
