Product Summary

The APT15GT120BRG is a new generation of high voltage power IGBT. Using Non- Punch Through Technology, the APT15GT120BRG offers superior ruggedness and ultrafast switching speed.

Parametrics

APT15GT120BRG absolute maximum ratings: (1)Collector-Emitter Voltage VCES: 1200V; (2)Gate-Emitter Voltage VGE: ±30V; (3)Continuous Collector Current @ TC = 25℃ IC1: 36A; (4)Continuous Collector Current @ TC = 110℃ IC2: 18A; (5)Pulsed Collector Current 1 @ TC = 150℃ ICM: 45A; (6)Switching Safe Operating Area @ TJ = 150℃ SSOA: 45A @ 960V; (7)Total Power Dissipation PD: 250W; (8)Operating and Storage Junction Temperature Range TJ,TSTG: -55 to 150℃; (9)Max. Lead Temp. for Soldering: 0.063" from Case for 10 Sec. TL: 300℃.

Features

APT15GT120BRG features: (1)Low Forward Voltage Drop; (2)High Freq. Switching to 50KHz; (3)Low Tail Current; (4)Ultra Low Leakage Current; (5)RBSOA and SCSOA Rated.

Diagrams

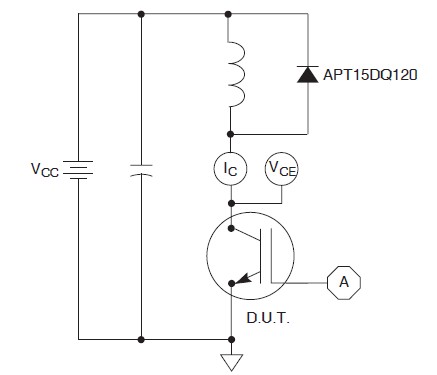

APT15GT120BRG Inductive Switching Test Circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

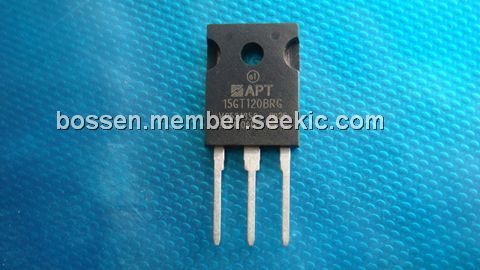

APT15GT120BRG
APT15GT120BRG

IGBT 1200V 36A 250W TO247
Data Sheet
0-1: $3.29
1-10: $2.94
10-100: $2.41
100-250: $2.17
250-500: $1.95
500-1000: $1.64
1000-2500: $1.56
2500-5000: $1.50
5000-10000: $1.46
