Product Summary

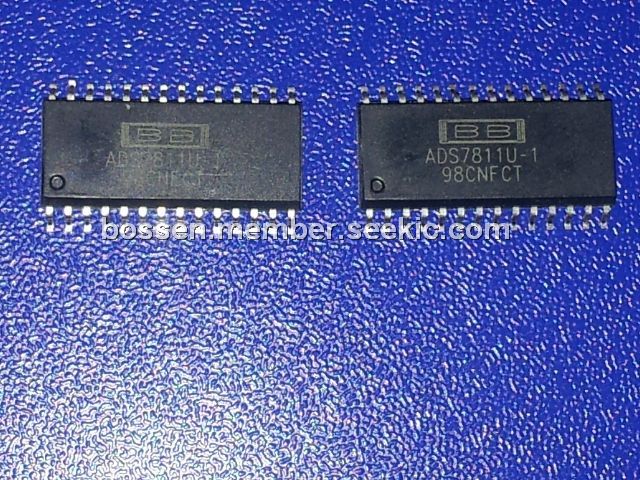

The ADS7811U-1 is a complete 16-bit sampling analog-to-digital (A/D) converter featuring excellent AC performance and a 250kHz throughput rate. The design includes a 16-bit capacitor-based SAR A/D converter with an inherent sample and hold (S/H), a precision reference, and an internal clock. The applications of the ADS7811U-1 are wireless base stations, spectrum analysis, imaging systems, data acquisition. The ADS7811U-1 is available in a 28-lead SOIC package specified for operation over the industrial –25℃ to +85℃ temperature range.
Parametrics
ADS7811U-1 absolute maximum ratings: (1)Analog Inputs: VIN:–VS–0.3V to +VS + 0.3V, REF:– 0.3V to +VS + 0.3V, CAP:Indefinite Short to GND Momentary Short to +VS; (2)+VS:7V; (3)–VS:–7V; (4)Digital Inputs:–0.3V to +VS + 0.3V; (5)Maximum Junction Temperature:+165℃; (6)Internal Power Dissipation:825mW; (7)Lead Temperature (soldering, 10s):+300℃.
Features
ADS7811U-1 features: (1)250kHz sampling rate; (2)complete with s/h, ref, clock, etc.; (3)96dB min SFDR with 100kHz input; (4)84dB min SINAD; (5)±2.5V input range; (6)28-lead SOIC.

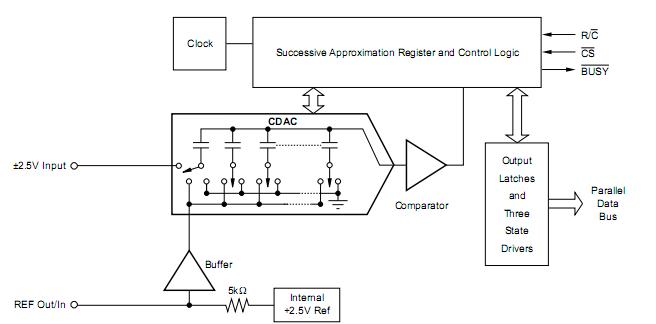

Diagrams
 |
