Product Summary
The 2SC5196 is a NPN triple diffused type device from Toshiba Semiconductor.
Parametrics
2SC5196 absolute maximum ratings: (1)Collector-Emitter Voltage, VCBO: 80V ; (2)Collector-Emitter Voltage, VCEO: 80V ; (3)Emitter-Base Voltage, VEBO: 5V ; (4)Collector Current-Continuous, IC: 6A ; (5)Base Current-Continuous, IB: 0.6A ; (6)Collector Power Dissipation @TC≤25℃, PC: 60W ; (7)Junction Temperature, TJ: 150℃ ; (8)Storage Temperature, Tstg: -55 to 150℃.
Features
2SC5196 features: (1)Low Collector Saturation Voltage: VCE(sat)= 2.0V(Min) @IC= 5A; (2)Good Linearity of hFE; (3)Complement to Type 2SA1939.

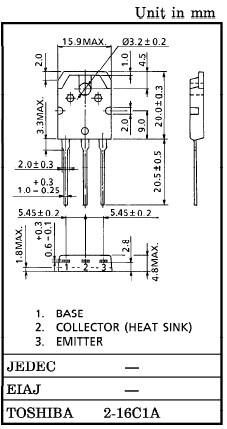

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
2SC5196 |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
