Product Summary

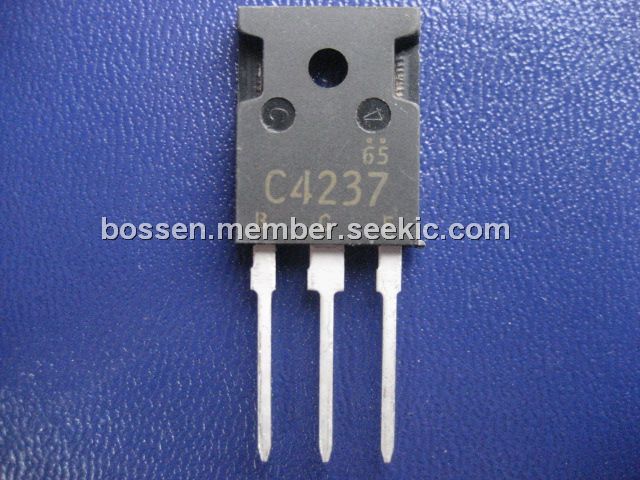

The 2SC4237 is an isc Silicon NPN Power Transistor for Color TV horizontal output applications.
Parametrics
2SC4237 absolute maximum ratings: (1)VCBO, Collector-Base Voltage: 1200 V; (2)VCEO, Collector-Emitter Voltage: 800 V; (3)VEBO, Emitter-Base Voltage: 7 V; (4)IC, Collector Current-Continuous: 10 A; (5)ICM, Collector Current-Peak: 20 A; (6)IBB, Base Current-Continuous: 4 A; (7)IBM, Base Current-Peak: 8 A; (8)PT, Total Power Dissipation @ TC=25℃: 150 W; (9)TJ, Junction Temperature: 150 ℃; (10)Tstg, Storage Temperature Range: -55~150 ℃.
Features
2SC4237 features: (1)Collector-Emitter Sustaining Voltage: VCEO(SUS)= 800V(Min); (2)Fast Switching speed.

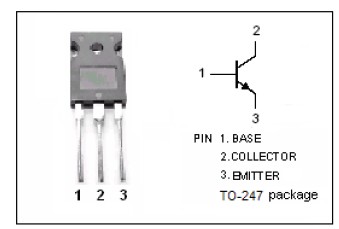

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SC4237 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
2SC4237-7100 |
Shindengen |
Transistors Bipolar (BJT) VCEO=800 IC=10 HFE=8 |
Data Sheet |
Negotiable |
|
||||
|
2SC4237-7112 |
Shindengen |
Transistors Bipolar (BJT) VCEO=800 IC=10 HFE=8 |
Data Sheet |
Negotiable |
|
||||
