Product Summary

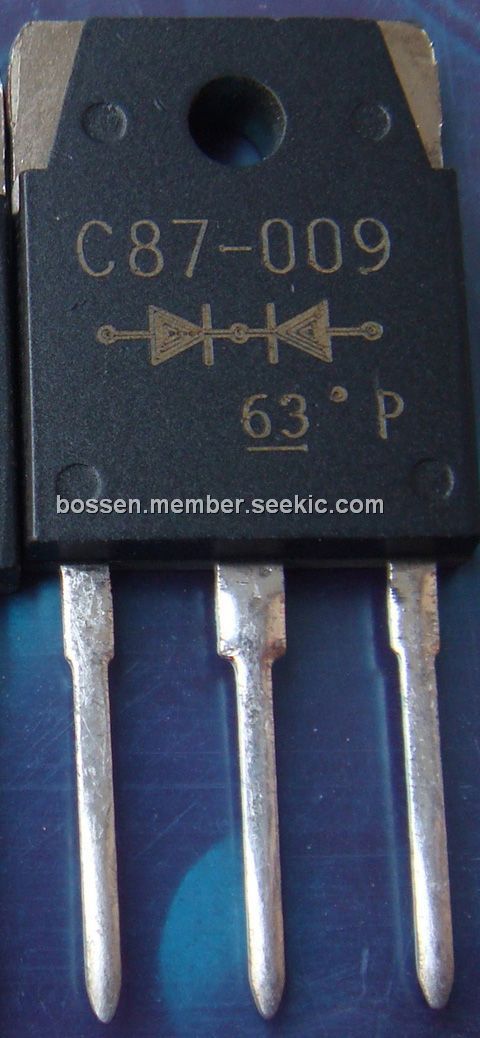

The C87-009 is a schottky barrier diode.
Parametrics
C87-009 absolute maximum ratings: (1)Repetitive peak reverse voltage, VRRM: 90V; (2)Non repetitive peak reverse voltage, VRSM: 100V; (3)Average output, IO: 16A; (4)Surge current, IFSM: 100A; (5)Operating junction temperature, TJ: -40 to +125℃; (6)Storage temperature, Tstg: -40 to +125℃.
Features
C87-009 features: (1)Low VF; (2)Super high speed switching; (3)High reliability by planer design.

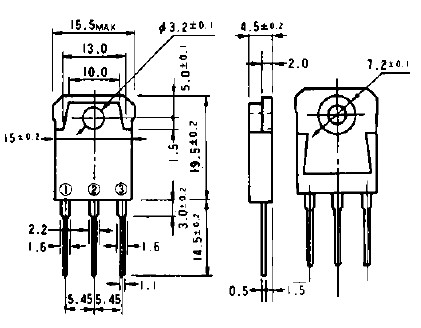

Diagrams
