Product Summary

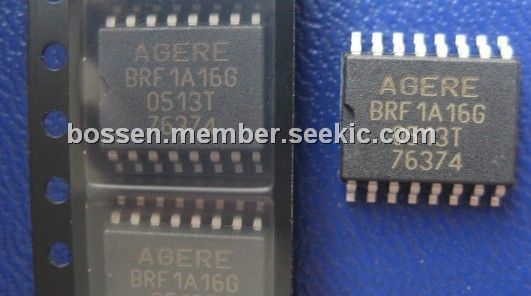

The BRF1A16G is a quad differential receiver which accept digital data over balanced transmission lines. The BRF1A16G translate differential input logic levels to TTL output logic levels. The BRF1A16G has four receivers with a common enable control. These receivers of BRF1A16G are pin equivalent to the general-trade 26LS32, but offer increased speed and decreased power consumption.
Parametrics
BRF1A16G absolute maximum ratings: (1)Power Supply Voltage, VCC: 6.5V ; (2)Ambient Operating Temperature, TA: -40 to 125℃ ; (3)Storage Temperature, Tstg: -40 to 150℃.
Features
BRF1A16G features: (1)High input impedance approximately 8kW; (2)Four line receivers per package; (3)400 Mbits/s maximum data rate when used with Agere Systems Inc. data transmission drivers; (4)Meets enhanced small device interface (ESDI) standards; (5)4.0 ns maximum propagation delay; (6)<0.20 V input sensitivity; (7)-1.2V to +7.2V common-mode range; (8)-40℃ to +125℃ ambient operating temperature range (wider than the 41 Series); (9)Single 5.0 V ± 10% supply; (10)Output defaults to logic 1 when inputs are left open; (11)Available in four package types; (12)Lower power requirement than the 41 Series.
Diagrams
 |
