Product Summary

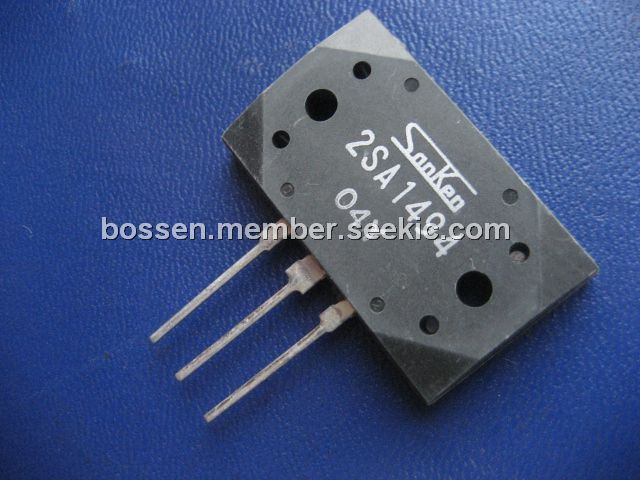

The 2SA1494 is a Silicon PNP Epitaxial Planar Transistor for audio and general purpose.
Parametrics
2SA1494 absolute maximum ratings: (1)VCBO: -200v; (2)VCEO: -200v; (3)VEBO: -6v; (4)IC: -17A; (5)IB: -5A; (6)PC: 200(Tc=25℃)w; (7)Tj: 150℃; (8)Tstg: –55 to +150℃.
Features
2SA1494 electrical characteristics: (1)ICBO at VCB=-200V: -100max uA; (2)IEBO at VEB=-6V: -100max uA; (3)V(BR)CEO at IC=-50mA: -200min V; (4)hFE at VCE=-4V, IC=-8A: 50min; (5)VCE(sat) at IC=-10A, IB=-1A: -2.5max v; (6)fT at VCE=-12V, IE=1A: 20typ MHZ; (7)COB at VCB=-10V, f=1MHz: 500typ pF.

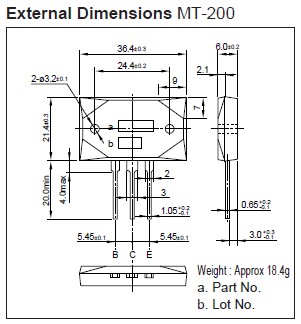

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SA1494 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
2SA1494Y |
Other |
|
Data Sheet |
Negotiable |
|
||||
